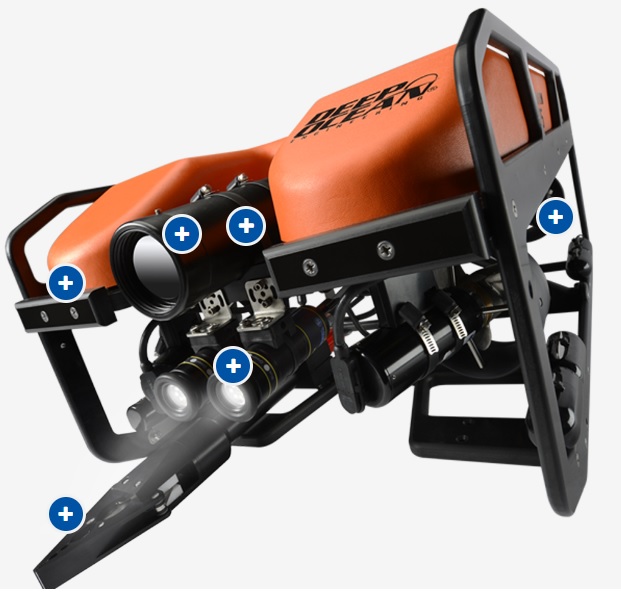

Phantom - Model T-Series -High-Performance Underwater Remotely Operated Vehicle System (ROV)
The Phantom T-Series is a rapid deployment high-performance ROV system that provides more power and versatility compared to other vehicles in its class. Its polypropylene chassis is resilient, non-corroding, and maintenance free. The Phantom® T5`s design of its four vectored horizontal and one vertical Tecnadyne® thrusters provides significant control and propulsion in current, with abundant propulsive force to maneuver aggressively in all directions. The T-Series can be customized with three, four, or five total thrusters dependent upon the application.
The Phantom® T-Series is a rapid deployment high performance ROV system that provides more power and versatility compared to other vehicles in its class. Its polypropylene chassis is resilient, non-corroding, and maintenance free.
- Powerful maneuverability
- Incorporates an open architecture
- Integrates with a wide variety of sensors
- Hand-built on a rugged, resilient, non-corroding polypropylene chassis
- Chassis accommodates heavier payloads
- HD camera (1920x1080) front mounted on mechanical tilt
- Front facing LED lighting (18,000 lumens)
- Control console and power unit
- 300m copper umbilical
- Auto functions for heading, depth and trim (speed)
- Upgraded umbilicals
- Cameras
- Lights
- Sonars
- Manipulators
- GPS, INS, DVL and navigational software
- Configuration :4 vectored horizontal, 1 vertical (T5)
- Forward Thrust :63.0kgf (139 lb) (T5)
- Lateral Thrust :14.0kgf (30 lb) (T5)
- Vertical Thrust :17.0kgf (37 lb)) (T5)
- Thrusters :Magnetically-coupled brushless thrusters
- Speed at Surface :4.0 knots (T5)
- Weight in Air : 39.5 kg (87 lbs.)
- Length : 889 mm (35 in)
- Width : 559 mm (22 in)
- Height : 406 mm (16 in)
