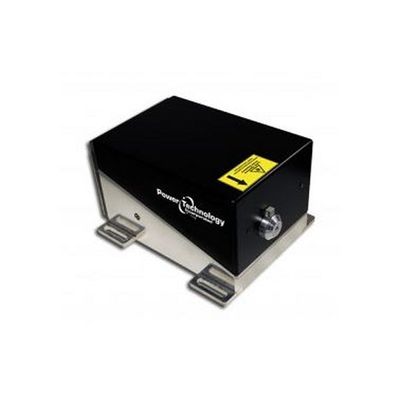

SymphonyModel 532-1000 -High Power Diode Pumped Solid State Laser System

SHARE

The Symphony series of lasers are high power diode pumped solid state laser systems (DPSS) that emit single frequency green laser light at 532nm. These systems are based on Power Technology’s patented iMAT laser technology providing diffraction limited beam quality, intrinsic single longitudinal mode output and industry leading optical performance all in a compact, proprietary design. Applications include holography, vibrometry, particle visualization, Ti:Sapphire laser pumping and forensics.

Most popular related searches
  • Power (in mW): 1000
  • Output Power Stability: <2% (4 HOURS)
  • Output Power Noise (rms): <0.5% (10 Hz-10MHz)
  • Output Power Noise: <3% (10 Hz- 10 MHz)
  • Transverse Mode Structure: TEM00, M2 <1.05
  • Beam Size: CW
  • Beam Shape: 0.7mm(+/-0.2)@10mm 1/e2
  • Beam Divergence (1/e2): <1 mrad 1/2 angle
  • Beam Pointing Stability: ? 10 ?rad / °C
  • Polarisation Ratio: >100:1
  • Single Longitudinal Mode: DPSS
  • Weight: 1.0000
  • Spatial Mode: TEM00, M2 <1.05
  • Laser Safety Class: Green
