CoboltModel 05-01 Series -High Power, Single Frequency, CW Diode Pumped Lasers Module

SHARE

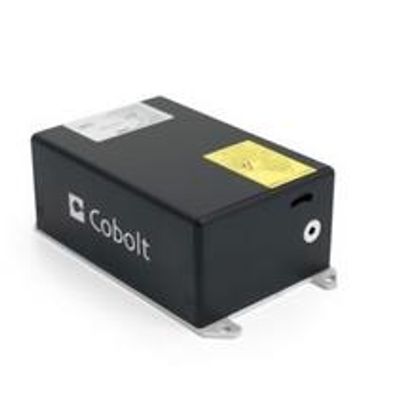

The Cobolt 05-01 Series lasers are continuous-wave diode pumped lasers (DPL) operating at a fixed wavelength between 320 nm and 1064 nm. Single frequency operation provides an ultra narrow spectral linewidth, long coherence length and excellent spectral purity. In the Cobolt 05-iE all-in-one lasers all control electronics are contained in the laser head eliminating the need for an external controller and bringing the trusted laser performance of Cobolt 05-01 Series into a compact, self-contained device. The lasers are designed and manufactured to ensure a high level of reliability.

Most popular related searches

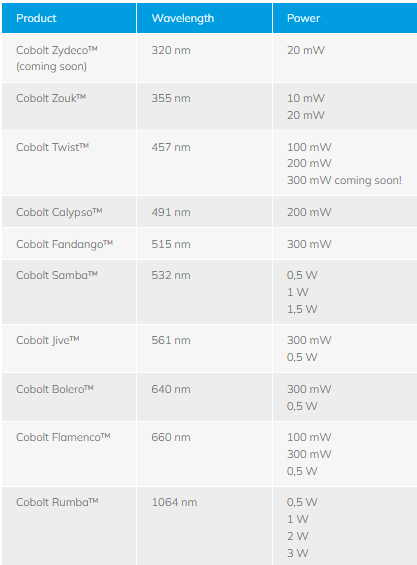

  • 320 nm – 1064 nm, CW up to 3 W
  • High quality laser beam, TEM00
  • Linewidth < 1 MHz, (>100 m coherence length)
  • Low noise,
  • Wavelength stability
  • Insensitive to optical feedback
  • Ultra-robust, hermetically sealed packages, proven reliability
  • Up to 24 months warranty, unlimited hours
  • Fully integrated electronics option available
