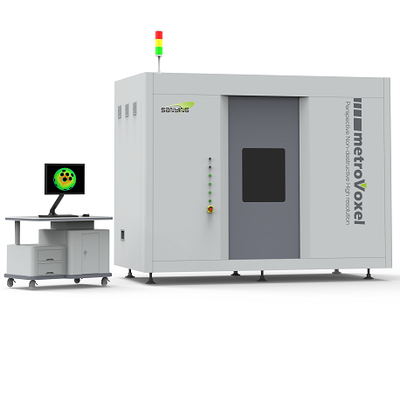

SANYING - Model metroVoxel -High-Precision 3D Measurement System
metroVoxel offers a high-precision 3D measurement and analysis system designed for non-destructive analysis and comprehensive internal measurements of products. The system features a grating ruler closed cycle control system and a granitic base for enhanced temperature stability, ensuring long-term high precision with fewer running axles. It boasts a spatial resolution of 2μm and metrology accuracy of 9μm+L/100, and operates with an open, reflection type X-ray source with voltage options of 300KV, 240KV, 225KV, 190KV, and 160KV. The flat panel detector covers an imaging area of 427mm×427mm with a pixel matrix of 3072×3072. Capable of handling samples up to 600mm in diameter and 550mm in height, and supporting weights up to 25 kg, this robust equipment weighs 7500 kg and measures 2770mm in length, 1440mm in width, and 2040mm in height. Compatible hardware and software configurations allow users to tailor the system to specific applications in industries such as oil and gas, geotechnical engineering, and materials science.
metroVoxel’s high-precision three-dimensional measurement and analysis realize non-destructive analysis and full-scale measurement inside the product.
Industrial measurement is changing from traditional external measurement to internal non-destructive analysis and full-scale measurement. Relying on tomography and advanced measurement analysis software, in non-destructive cases, X-ray CT technology uses two-dimensional tomographic images or three-dimensional images to clearly, accurately and intuitively display the internal structure, material composition and defect status of the tested object. Metrology CT is a CT system with high measurement precision, also known as an X-ray three-coordinate measurement system. With the help of Sanying's precise metrology CT technology, you can successfully obtain all internal and external structures and measure dimensions with only one scan.
- Grating ruler closed cycle control system
- Granitic base to guarantee the temperature stability
- Less running axles to ensure a long-term high precision
Resolution
Detectability : 500nm
Spatialresolution* : 2μm
Metrology accuracy : 9μm+L/100
X-ray source
Tube type : Open, Reflection
Voltage : 300KV / 240KV / 225KV / 190KV / 160KV
Detector (Flat panel)
Imaging area : 427mm×427mm
Pixel matrix : 3072×3072
Sample
Maximum size : 600mm×550mm（diameter × height）
Maximum weight : 25kg
Equipment
Dimension : 2770mm×1440mm×2040mm（length × width × height）
Weight : 7500kg
