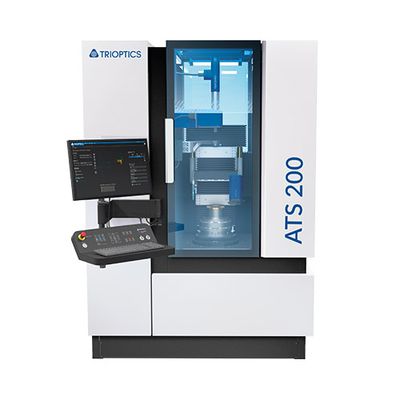

TRIOPTICS - Model ATS 200 -High-Precision Alignment Turning Station

• Optional with hydrostatic spindle
• Automated adjusting chuck
• Great stiffness and thermal stability due to optimized granite base
• Reproducible manufacturing with a repeat accuracy of better than 1.0 µm

The ATS 200 UP is a variant of the ATS 200 with an identical basic structure. What sets it apart is the use of an extremely stable spindle with hydrostatic bearing supports. This increases its rigidity even more and offers excellent damping, ensuring that very high accuracy requirements of better than 0.5 microns can be achieved.

The alignment, cementing and bonding of lens elements in production can take place both manually and automatically. The lens edge or – thanks to the patented OptiCentric® software module SmartAlign – the optical axis of a lens can be used as a reference for alignment.
