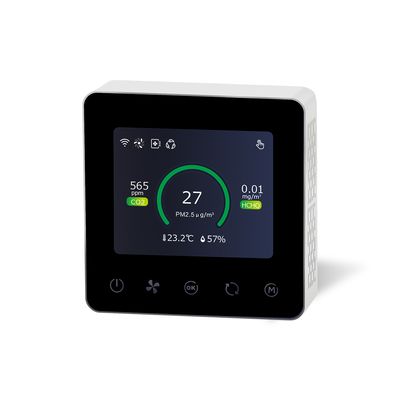

Cubic - Model AM6108 -High Precision Smart Temperature Humidity Gas Sensor Air Quality Detector Carbon Dioxide Meter Controller CO2 Monitor
Wall mount integrated air quality HVAC controller AM6108B is a built-in IAQ sensor module. Users can get the real time data of the air quality, including particle concentration, CO2 level, VOC concentration, temp and humidity. Measuring data can be transferred to the host by RS485 or WiFi, to realize online air quality monitoring. It can be used to control the fan speed automatically to adjust fresh air flow rate, to keep indoor air quality at designed level.
- Real-time particle concentration, VOC, RH&T monitoring.
- UI display for end users.
- Measuring data transfer via WiFi available.
- RS485 control output.
- OEM available.
- Measurement range: CO2: 0~5000ppm; PM2.5/PM10: 0~5000μg/m³;
- Temp: -10℃~50℃
- RH: 0%~95%RH
- PM accuracy: PM2.5: ≤100μg/m³; ±10μg/m³, >100μg/m³: ±10% of reading
- PM10: ≤100μg/m³; ±25μg/m³, >100μg/m³: ±25% of reading (25℃±2℃, 50±10%RH, GRIMM, Cigarette+Arizona A1)
- CO2 accuracy: ±(50ppm+5% of reading)@-10~50℃
- Temp accuracy: ±1℃
- Humidity: ±8%RH
- Working temperature: -10℃~50℃,0~95%RH(non-condensing)
- Warm up time: <120s
- Storage temperature: -20℃~60℃,0~95%RH(non-condensing)
- Power supply: DC 12V
- Signal output: RS485 control output
- Dimension: W86*H86*D25(mm)
Fresh Air System
With the rapidurbanization process, the problem of energy consumption has become more andmore serious.Among them, building energy consumption is one of the largestenergy consumptions.
Fresh Air System Controller
For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.
