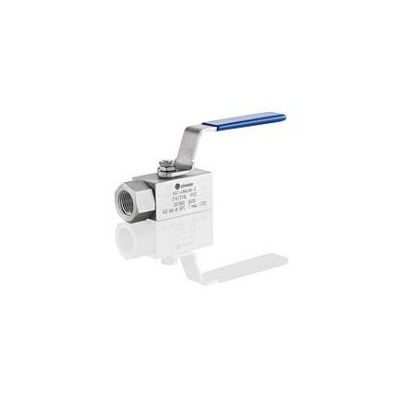

Armaturenfabrik - Model KA Series -High Pressure Ball Valves
AS-Schneider KA Series Ball Valves are available with a lot of options. The below mentioned valves (see drawings) are the standard types (1/2 NPT threaded, except the KA1-H##H## Type). If you need the dimensions for your individual type please contact the factory.
Bore Size: 0.39" (10 mm)
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
- KA Ball Valve - Bore Size 0.39" (10 mm)
- 1 Seal Material of Packing / Ball Seat / End Connector:
- PTFE / Reinforced PTFE / PTFE
- LN Inlet Thread Type: NPT Female
- 4 Inlet Thread Size: 1/2
- LN Outlet Thread Type: NPT Female
- 4 Outlet Thread Size: 1/2
- S Meterial: 1.4401 / 1.4404 / 316 / 316L
Further Information
AS-Schneider KA Series Ball Valves are available with a lot of options. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider KA Series Ball Valves, as standard, are rated to 420 bar (6,092 psi), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
