Armaturenfabrik - Model KB & KC Series -High Pressure Ball Valves
AS-Schneider KB & KC Series Ball Valves are available with a lot of options. The below mentioned valves (see drawings) are the standard types. If you need the dimensions for your individual type please contact the factory. Bore Size: 14 mm (0.55") and 20 mm (0.79"). A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.

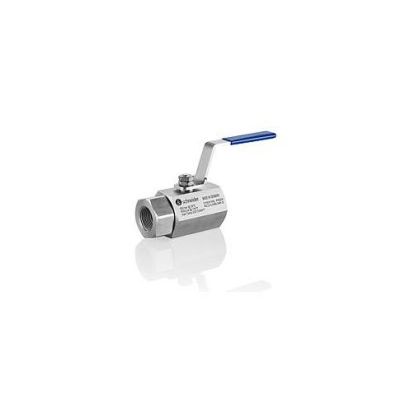

- KB Ball Valve - Bore Size 14 mm (0.55")
- 3 Seal Material / Ball Seat: PTFE / PEEK
- LN Inlet Thread Type: NPT Female
- 6 Inlet Thread Size: 3/4
- LN Outlet Thread Type: NPT Female
- 6 Outlet Thread Size: 3/4
- S Material: 1.4401 / 1.4404 / 316 / 316L
Further Information
AS-Schneider KB & KC Series Ball Valves are available with a lot of options. The robust design of the valves gives long service life and optimum operating comfort. The AS-Schneider KB & KC Series Ball Valves, as standard, are rated to 420 bar (6,092 psi) at PEEK Seat and 150 bar (2,175 psi) at RPTFE Seat. AS-Schneider also provides the valves for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156) and degreased and lubricated for oxygen service.
