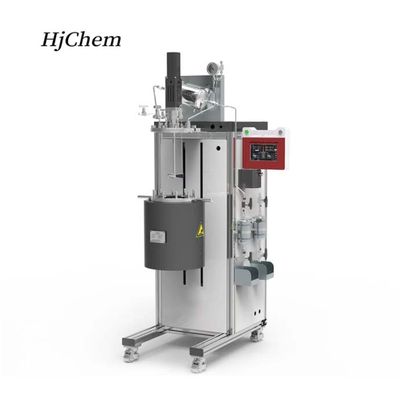

Hjchem - High Pressure Batch Catalytic Hydrogenation Reactor
This advanced batch hydrogenation reactor delivers unmatched flexibility and control. Designed to operate safely under high pressure (configurable to meet your specific requirements), it enables faster reaction kinetics, higher conversions, and access to chemistries impossible at lower pressures.Most popular related searches
high-pressure feed pump
gas mass flow metering
gas mass flow meter
mass flow metering
gas mass flow
mass flow meter
heating circulator
digital temperature controller
flow meter
mass flow
- Volume: 5/10/20/25/30L (customizable）
- Material: 316L (other special materials customizable)
- Structure: Flange type, customizable
- Heating method: electrical heating, circulating oil heating.
- Structure: fixed vessel lid, vessel body is lifted up and down.
- Temperature: RT-300°C (customizable)
- Pressure: -0.1~10MPa (customizable)
- Agitation Method: mechanical stirring.
- Interfaces on the lid: temperature sensor, pressure gauge & rupture disc, gas inlet, vent, spare port,
- Power Supply: AC220V, 50HZ/60HZ
- Control: Touch screen control, PID self-tuning temperature control.
- Isobaric Feeding: Add liquid reactants during reaction (controlled total volume)
- High-Pressure Feed Pump: Introduce liquid reactants during reaction (precise flow rate control)
- Gas Mass Flow Meter: Accurately measure cumulative gas flow and instantaneous flow rate
- Built-in Cooling Coil: Enables rapid internal reactor cooling
- Condenser: Provides condensation reflux or solvent recovery functionality
- Process sampling function: rapid sampling and analysis during the reaction process.
