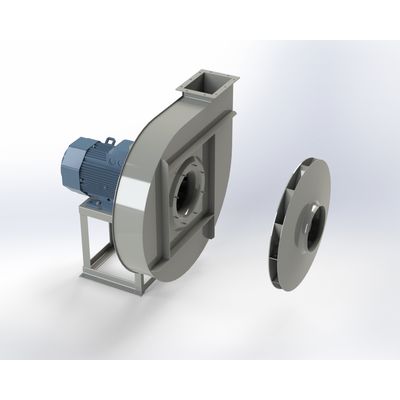

Euroventilatori - Model APR Series -High Pressure Centrifugal Fans
High pressure centrifugal fans with high efficiency reverse-blade impeller. Direct driven.
Most popular related searches
Use: suction of clean or dusty air. These types of high pressure fans are characterized by a high output with saving of electric power as they have a special reverse-blade impeller.
Temperature: must not exceed 80°C without cooling fan and 150° C with cooling fan.
- Air flow: 6.5-17.700001m3/min
- Inlet pressure: 335-405kg/m2
- Outlet pressure: 355-423kg/m2
- Engine installed: 90 S-2poles
- Installed power: 1.5KW
- Rotation speed: 2850round/min
- Limit speed: 2900round/min
- Fluid type: Clean
- Inlet flange: ?165mm
- Outlet flange: 125x90mm
- Weight without engine: 43Kg
- GD2: 0.8Kgm2
General notes:
The fan is revolvable.
Uses of Variable Speed Drives please pay attention to the possible overheating of the motor due to a lower rpm/Hz than recommended by the motor supplier.
