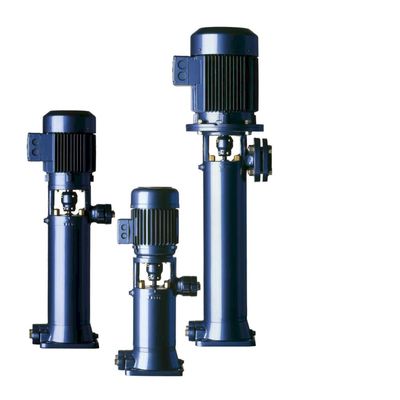

OSNA - Model CVP -High Pressure Centrifugal Pump
Non-selfpriming multistage high pressure centrifugal pump in vertical design. For the pumping of clear water and slightly contaminated liquids in pressure boosting systems, central heating, cold and hot water circulation, water supply systems, power stations, filter units, fire extinguishing, irrigation plants and general industry up to +80 °C (+100 °C), 176 °F (212 °F)
Performance data
Q max. 15 m³/h (66 USGPM)
H max. 200 m (655 ft)
Design
Non-selfpriming multistage high pressure centrifugal pump in vertical design, shaft sealing by mechanical seal
Materials
Impellers and shaft made of stainless steel, diffusers ad wear plated made of Ryton, suction and discharge casing made of cast iron, shroud made of steel (optionally stainless steel). Other materials of construction can be selected according to requiremends of the pumping medium
