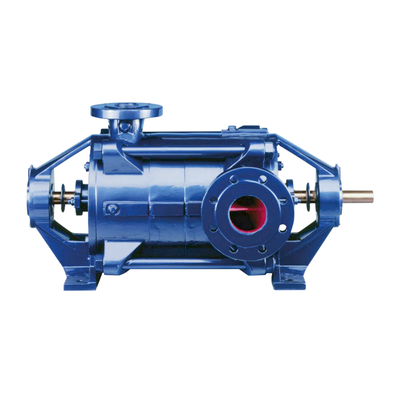

OSNA - Model NMH -High Pressure Centrifugal Pump
FromOSNA-Pumpen GmbH
Non-selfpriming multistage high pressure centrifugal pump in horizontal design. For the pumping of clear water and slightly contaminated liquids in pressure boosting systems, central heating, cold and hot water circulation, water supply systems, shipbuilding, the mining industry, power stations, filter units, fire extinguishing and irrigation plants up to +140 °C (284 °F)
Most popular related searches
high-pressure pump
centrifugal pumping
centrifugal pump
centrifuge
water circulation system
multistage centrifugal pump
water circulator
fire extinguishing
fire extinguisher
water supply
Performance data
Q max. 220 m³/h (970 USGPM)
H max. 400 m (1.312 ft)
Design
Non-selfpriming multistage high pressure centrifugal pump in horizontal design, shaft sealing by gland packing or mechanical seal
Materials
Depending on the requirements of the liquids or customers` requests, available in cast iron, stainless steel, bronze
