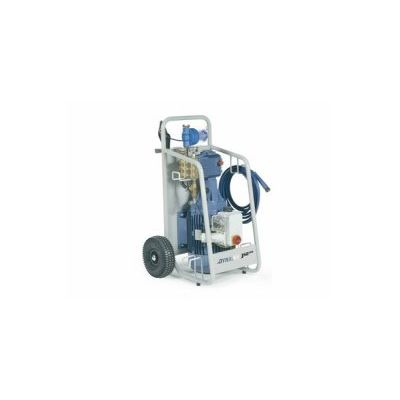

Dynajet - Model 350me 400V/50Hz -High Pressure Cleaners
Welcome to the innovative and compact "me" class! In addition to its performance, the DYNAJET 350me, offering a working pressure of up to 350 bar (5,075 PSI), convinces above all with its compact dimensions and high level of mobility. This versatile high-pressure cleaner is one of the all-rounders in our range.
Structure:
- Robust, powder-coated steel frame for optimum machine protection and a long service life
- Single-axle chassis with pneumatic tyres for easy on-site manoeuvrability
- A perfect centre of gravity for flexibility and stability
- Screws made of corrosion-free material for high durability
- Splash-resistant (IP54) electricals box for versatile and problem-free deployment
- Operating-hours counter for optimum product costing analyses
Drive:
- Manual star/delta starter to protect the power supply
- Compact and robust industrial electric motor for a long service life with maximum operating times
- Flexible coupling for high and economical operational comfort
- Motor safety-switch for emergencies
Water supply:
- Tilt switch to monitor the horizontal working position and avoid operating errors
- Suction pressure control to protect the pump in the case of a weak water supply
- Cleanable stainless-steel water filter for maximum service life of the pump
- Low-maintenance industrial crankshaft pump for high performance and maximum service life
- Thermo safety valve for additional protection of the pump
- Integrated frost protection switch to prevent the pump from being damaged by frost
- Safety valve for additional safety during operation
- Large-sized bypass hose to prevent pressure peaks and temperature increases
Base data
- System Cold-water high-pressure cleaners
- Type Trolly/Box
Pressure
- Pressure class 350 bar (5,075 PSI)
- Pressure variable Yes
- Minimal pressure 100 bar (1,450 PSI)
Hydraulics
- Minimum flow rate 7 l/min (1.85 USgal/min)
- Maximum flow rate 21 l/min (5.56 USgal/min)
- Pump revolution speed Max. 1450 rpm
- Hydraulic power 14 kW (19 Hp)
- Pump Triplex plunger pump with ceramic coating
Threaded connection
- Input port GEKA
- Output port M22x1.5 ET
Drive
- Drive type Electric motor
- Motor power 15 kW (20 Hp)
- Motor speed Max. 1450 rpm
- Motor type Electric motor, IP54
- Voltage and frequency (electric motor only) 400 V three-phase current, 50 Hz
- Power transmission from motor to pump Direct
Others
- Medium Clear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
- Chassis 2 wheels, trolly concept
- Weight in kg 147
- Dimensions (L/W/H) 110 x 66 x 65 cm
- Article number 1488003W
Lifting eye, operating-hours meter, socket for plug 32A CEE, manual star-delta and motor safety switch, level sensor to protect the machine from running dry, stainless-steel water filter, supply-pressure and water temperature-monitoring, crankshaft pump, high-pressure gauge, safety valve, Automatic pressure regulation with bypass function for infinitely variable pressure adjustment, frost protection function, operating manual
Scope of supply:High-pressure cleaning gun with extension pipe (total length approx. 800 mm), nozzle carrier and 15° flat-jet nozzle, storage box.
