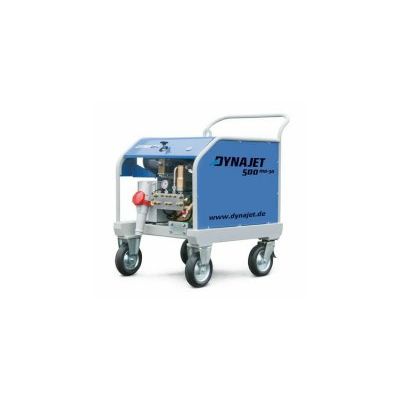

Dynajet - Model 500/30me 400V/50Hz HELI -High Pressure Cleaners
Welcome to the compact "me" class, with an especially high flow rate! In contrast to its smaller colleague, DYNAJET 500me, the more powerful DYNAJET 500/30me, offering a working pressure of up to 500 bar (7,250 PSI), achieves a flow rate of 30 l/min or 7.94 USgal/min (1,800 l/h) for particularly demanding tasks. Of course, in addition to its performance, the DYNAJET 500/30me convinces above all with its compact dimensions and high level of mobility.
Structure:
- Robust, powder-coated steel frame for optimum machine protection and a long service life
- Screws made of corrosion-free material for high durability
- Central lifting eye for easy transportation and handling
- Splash-resistant (IP54) electricals box for versatile and problem-free deployment
- Operating-hours counter for optimum product costing analyses
Drive:
- Automatic star/delta starter to protect the power supply
- Compact and robust industrial electric motor for a long service life with maximum operating times
- Belt drive for quiet operation and extended maintenance intervals
- Motor safety-switch for emergencies
Water supply:
- Suction pressure control to protect the pump in the case of a weak water supply
- Cleanable stainless-steel water filter for maximum service life of the pump
- Low-maintenance industrial crankshaft pump for high performance and maximum service life
- Optional booster pump with stainless steel storage tank for independence from supply water pressure and as buffer to calm the water
- Thermo safety valve for additional protection of the pump
- Integrated frost protection switch to prevent the pump from being damaged by frost
- Safety valve for additional safety during operation
- Large-sized bypass hose to prevent pressure peaks and temperature increases
- Manual pressure adjustment for easy operation
Base data
- System Cold-water high-pressure cleaners
- Type Trolly/Box
Pressure
- Pressure class 500 bar (7,250 PSI)
- Pressure variable Yes
- Minimal pressure 250 bar (3,635 PSI)
Hydraulics
- Minimum flow rate 7 l/min (1.85 USgal/min)
- Maximum flow rate 30 l/min (7.94 USgal/min)
- Pump revolution speed Max. 970 rpm
- Hydraulic power 28 kW (38 Hp)
- Pump Triplex plunger pump with ceramic coating
Threaded connection
- Input port GEKA
- Output port M24x1.5 ET
Drive
- Drive type Electric motor
- Motor power 30 kW (41 Hp)
- Motor speed Max. 1450 rpm
- Motor type Electric motor, IP54
- Voltage and frequency (electric motor only) 400 V three-phase current, 50 Hz
- Power transmission from motor to pump Belts
Others
- Medium Clear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
- Chassis 4 wheels
- Weight in kg 450.0
- Dimensions (L/W/H) 116 x 80 x 130 cm
- Article number 1518020W
Lifting eye, operating-hours meter, socket for plug 63A CEE, automatic star-delta and motor safety switch, level sensor to protect the machine from running dry, stainless-steel water filter, supply-pressure and water temperature-monitoring, suction gauge, crankshaft pump, high-pressure gauge, safety valve, Automatic pressure regulation with bypass function for infinitely variable pressure adjustment with automatic hose pressure drop down system, frost protection function, operating manual
Scope of supply:10 m high-pressure hose for hot/cold-water, high-pressure cleaning gun with extension pipe (total length approx. 800 mm), nozzle carrier and 15° flat-jet nozzle
