Dynajet - Model 1000me 400V/50Hz/63A -High Pressure Cleaners

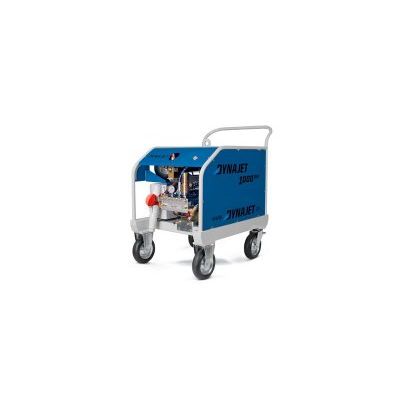

The first 1,000 bar (14,500 PSI) high-pressure cleaner without a control cable and with a dry-stop pistol. In the new DYNAJET 1000 me trolley, the best possible ergonomics are combined with maximum power to create concentrated efficiency. Making DYNAJETting even more environmentally friendly, efficient and safe.
Structure:
- Robust, powder-coated steel frame for optimum machine protection and a long service life
- Screws made of corrosion-free material for high durability
- Central lifting eye for easy transportation and handling
- Splash-resistant (IP54) electricals box for versatile and problem-free deployment
- Operating-hours counter for optimum product costing analyses
Drive:
- Automatic star/delta starter to protect the power supply
- Compact and robust industrial electric motor for a long service life with maximum operating times
- Belt drive for quiet operation and extended maintenance intervals
- Motor safety-switch for emergencies
Water supply:
- Suction pressure control to protect the pump in the case of a weak water supply
- Cleanable stainless-steel water filter for maximum service life of the pump
- Low-maintenance industrial crankshaft pump for high performance and maximum service life
- Independence from supply water pressure due to booster pump with stainless steel storage tank as buffer and to calm the water
- Thermo safety valve for additional protection of the pump
- Integrated frost protection switch to prevent the pump from being damaged by frost
- Safety valve for additional safety during operation
- Large-sized bypass hose to prevent pressure peaks and temperature increases
- Soft switching operations by means of switching valve with hose-pressure drop-down system
- The first 1000 bar (14,500 PSI) device with a dry-stop pistol
Base data
- System Cold-water high-pressure cleaners
- Type Trolly/Box
Pressure
- Pressure class 1,000 bar (14,500 PSI)
- Pressure variable Yes
- Minimal pressure 400 bar (5,800 PSI)
Hydraulics
- Minimum flow rate 17 l/min (4.51 USgal/min)
- Maximum flow rate 17 l/min (4.51 USgal/min)
- Pump revolution speed Max. 850 rpm
- Hydraulic power 32 kW (44 Hp)
- Pump Triplex plunger pump with package seal, rinsing/cooling and carbide plungers
- Volume water tank 20 l (5.29 USgal)
Threaded connection
- Input port GEKA
- Output port M24x1.5 DKO ET
Drive
- Drive type Electric motor
- Motor power 30 kW (41 Hp)
- Motor speed Max. 1450 rpm
- Motor type Electric motor, IP54
- Voltage and frequency (electric motor only) 400 V three-phase current, 50 Hz
- Power transmission from motor to pump Belts
Others
- Medium Clear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
- Chassis 4 wheels
- Weight in kg 560.0
- Dimensions (L/W/H) 116 x 80 x 130 cm
- Article number 1585050W
Lifting eye, operating-hours meter, socket for plug 63A CEE, automatic star-delta and motor safety switch, level sensor to protect the machine from running dry, stainless steel buffer tank and booster pump for correct suction pressure, stainless-steel water filter, supply-pressure and water temperature-monitoring, suction gauge, crankshaft pump, high-pressure gauge, safety valve, Automatic pressure regulation with bypass function with automatic hose pressure drop down system, frost protection function, operating manual
Scope of supply:10 m high-pressure hose for hot/cold-water, high-pressure cleaning gun with extension pipe (total length approx. 800 mm), nozzle carrier and 15° flat-jet nozzle
