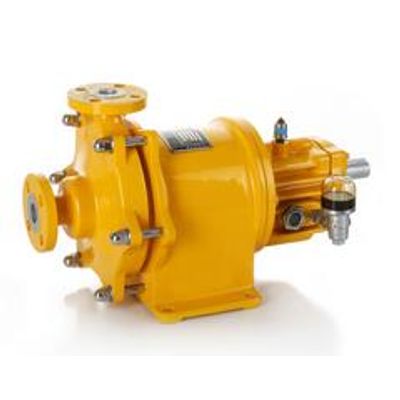

HMD Kontro - Model HPGS -High Pressure General Service Sealless Magnetic Drive Pump
The HPGS from HMD Kontro is a sealless magnetic drive pump for high-pressure applications and particularly suitable for use in the chemical and petrochemical industries as well as site utilities.
It is vital for accuracy when checking the density of process fluids in a high-pressure pipeline and HPGS pumps are very suitable for this. Process engineers are thus able to utilise the HPGS pump on pipeline skids in order to take out a sample of the fluid from the main product stream from where the sample is conveyed through a densitometer designed to analyse the fluid, after which it is returned to the main pipeline.
The HPGS sealless magnetic drive pump can withstand system pressures of up to 2680 psi (185 bar) and is available with 7 hydraulics. It comes with a range of synchronous magnet drives, which are rated for prime mover performance. Standard construction is stainless steel with silicon carbide internal bearings although other metallic materials are also possible.
HPGS sealless magnetic drive pumps from HMD Kontro comply with all specifications required by the oil, gas, petroleum and heavy chemical industries and this pump is typically used in toxic, aggressive, hot, crystallising and high value processes.
- Sealless design for total product containment
- Modular/interchangeable high efficiency wet end
- Provides maximum flow and head coverage across all product ranges
- High efficiency magnetic couplings
- Ideal sampling unit for densitometer applications
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
- Flows to 400 m³/hr (1,760 gpm)
- Heads to 150 m (490 ft)
- Pressure 18.9 bar/275 psi
- Temperature Range -80 to 450°C (-112 to 842°F)
Chemical Processing
- Chlor-Alkali
- Pesticides
- Insecticides
- Herbicides
- Fertilizer
Hydrocarbon Processing
- Sour water
- Sulfuric acid
- Benzene
- Xylene
- Toluene
Upstream
- Produced water
- LACT
Aquatic and Marine
- Seawater
- Caustic
Battery Manufacturing
- Sulfuric acid
- Potassium hydroxide
Biofuels
- Bio-diesel
- Ethanol
Food and Beverage
- Fragrances
Mining
- Sodium cyanide
- Sulfuric acid
- Hydrochloric acid
Pharmaceutical
- Silicon oil (Heat transfer fluid)
Pulp and Paper
- Chlorine
- Sulfuric Acid
Semiconductor Manufacturing
- Hydrofluoric acid
- Sulfuric acid
Steel Finishing, Pickling, Etching and Plating
- Hydrochloric acid
Water and Wastewater Treatment
- Sodium hypochlorite
- Sodium hydroxide
- Sulfuric acid
- Ferric Chloride
