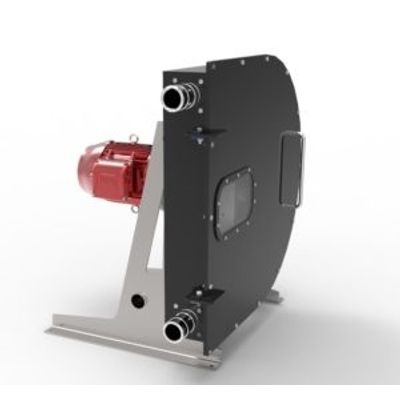

Stella - Model HCP 80 -High Pressure Hose Carrier Pump
FromStella O.M. sas
Low cost purchasing and maintenance. Self-priming and dry running capabilites. In line reversibility. High vacuum up to 9,5 meters. No valves, seat, seals, stator and rotor to wear. Semplified maintenance without remove piping. No contact between mechanical parts and pumped fluids.
Most popular related searches
high-pressure hose
high-pressure pump
hose pumping
hose pump
steel roller
lubricant system
roller bearing
bearing lubrication
fluid pump
pump hose
- Pump body in Carbon steel, Stainless steel.
- Rollers with for life lubricated bearings.
- Rollers with bearings protection optional.
- Retractable rollers optional.
- Double pump body option.
- Direct flanged gearbox on motor or with support optional.
- Containment and lubrication guides to extend hose life.
- Lubrication systems with grease o Lubex.
- Breakage tube control kit.
- Mechanical o electrical vacuum assist for high density fluids.
- Delivery max: Up to 43200 liters per hour
- Head max: Up to 8 bar
- Aspiration: Up to 9,5 meters
- Free passage: Diameter 80 mm
- Free passage hard solids: Diameter 20 mm
- Inlet – outlet: Barb hose DN 80 mm
- Power: 4.0 – 11 kW
- Voltage: Triphase
- Dimensions: H 1445 x 1560 x 1348
- Weight: kg.
- Hose materials NR – NBR HYP – EPDM – SIL – (FDA)
