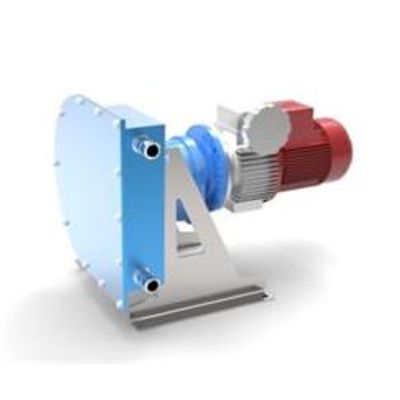

StellaModel HCP 25 -High Pressure Hose Carrier Pumps

SHARE

Low cost purchasing and maintenance. Self-priming and dry running capabilites. In line reversibility. High vacuum up to 9,5 meters. No valves, seat, seals, stator and rotor to wear. Semplified maintenance without remove piping. No contact between mechanical parts and pumped fluids. Pump body in Carbon steel, Stainless steel. Rollers with for life lubricated bearings. Rollers with bearings protection optional. Retractable rollers optional. Double pump body option. Direct flanged gearbox on motor or with support optional. Containment and lubrication guides to extend hose life. Lubrication systems with grease o Lubex. Breakage tube control kit.

Most popular related searches
  • Delivery max Up to 1650 liters per hour
  • Head max Up to 10 bar
  • Aspiration Up to 9,5 meters
  • Free passage Diameter 25 mm
  • Free passage hard solids Diameter 4 mm
  • Inlet – outlet Barb hose DN 32 mm
  • Power 0.37 – 0.75 kW
  • Voltage Mono – Triphase
  • Dimensions H 450 x 660 x 420
  • Weight kg.
  • Hose materials     NR – NBR HYP – EPDM – SIL – (FDA)
