Trii-Plex - High Pressure Hydro Jetting Machines

Trii-plex Jettech Systems are Manufacturers of Ultra-high Pressure Reciprocating Pumps as per client requirement of Flow Rate & Pressure for many Industries wise applications like Sugar Plant (Refinery), Power Plants, Cement Plant, Tank Manufacturers, Tire & Rubber, Ocean Platform, Oil Field, Petrochemical, Automobile, Ship Industry, Steel Structure Industry, Aerospace, etc.

Applications for High Pressure Water Jetting Pumps are:

• Water cleaning for some building surface
• High Pressure Hydrostatic Test of Heat Exchangers, Boilers, Tubes, Cross country pipelines
• High pressure water blasting
• Industrial Tube Cleaning of Heat Exchangers, Boilers, Condensor, Evaporators, etc
• ACC Tube Cleaning, APH Basket & Tubes Cleaning
• Ship Hull Cleaning, Paint Removal High Pressure Pumps
• Hydro Jetting Services
• High pressure water cleaning vessel
• Surface cleaning
• Pipe / Tank cleaning, Tube Bundles Cleaning
• Textile Industrial Work for Humidification
• Pharmaceutical factory and concrete removal and roughening
• Remove sand, oil, rust, colloid, paint and dirty stuff of castings
• Remove bread crust in rotary kiln of cement plant

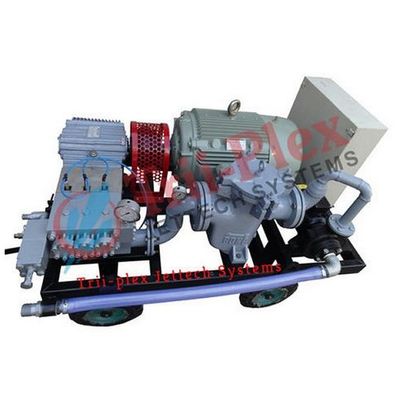

• Model No: SJ-26
• Flow Rate: 62 L/Min (16.38 GPM)
• Min. Pressure: 360 BAR (5221 PSI)
• Max. Pressure: 600 BAR (8702 PSI)
• Elec. Motor: 60HP~100HP (Standard / Flameproof)

• Triplex Plunger Bare Pump (Optional available Plunger Cooling System)
• Electric Motor (Standard / Flameproof)
• Diesel Engine (Optional)
• Platform (Base frame / Movable Trolley mounted)
• Pressure Gauge (Glycerin Field)
• Unloader Valve
• Pressure Relief Valve
• Heavy Duty Filter (Strainer)
• Electric Control Panel (Standard / Flameproof)
• Trigger Operated Dump Gun (Optional)
• High Pressure Hyd. Rubber Hose – 10 Mtrs (Extra as per client req.)
• Low Pressure Suction & Bypass hose
• Cleaning Nozzles, Tube Cleaning Nozzles, Tornado Nozzles,
• Flexible Lances Hose for Tube Cleaning (Imported)
• Rigid Lances – 400mm, 600mm, 800mm, 1000mm

• This pump can change flow by different diameter of plunger
• Can adjust work pressure to make high pressure
• The renewal of plunger and packing is simple and quick

• Inlet/Outlet 2" / 1/2" BSPF
• Head Size 600 BAR
• Flow Rate 62 LPM
• Max Suction 62 LPM
• Theory Jet Pump
• Material High Strength
• Structure Piston Pump
• Supply Ability : 50 Unit Per Week
