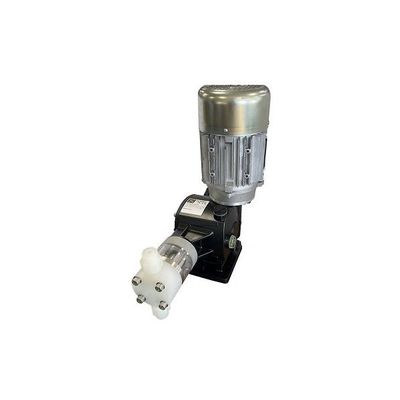

FG Pumps - Model FGFAP Series -High Pressure Motor Driven Hybrid Plunger Pump
FromFluidesa
The FG PUMPS FGFAP series are hybrid plunger dosing pumps for high pressure. Easy to use with minimum maintenance, FGFAP series are built following high quality standard. The medium to be pumped is separated from the drive by a special seal. This is thus protected from damaging influences of the medium.
Most popular related searches
plunger pump
head pump
peracetic acid
dosing pump
sodium hypochlorite
high-pressure plunger pump
chemical pump
- Safe and leak free operations, FGFAP pumps have a special concept of "plunger pump:
- no more seal wear, like other standard plunger pumps
- no more leackage after seal wear
- an intelligent concept of seal, that work with the plunger and no more around the plunger.
Accuracy +/- 2% from 10% to 100% of nominal flow
Standard micrometric manual adjustment, 1 mm per turn. 0-100% of adjustment while running or steady.
PVC Pump Head
- Ideal for:
- Fluorides, chrome, sodium hypochlorite
- Neutral chemical products
- Acid and strong acid chemical products
S.S.316L Pump Head
- Ideal for:
- Beverage and Food industry
- Peracetic acid, polyelecirolyte, nitric acid
- Alkali and neutral chemical products
- PVDF and S.S.316L are the standard wet parts materials:
- Pin! color follows PVDF Blue color follows S.S.316L
- GVA/GVM EPDM o-rings available on request
- Other special executions available on request
- Other pump-head materials available on request (Titanium as example)
