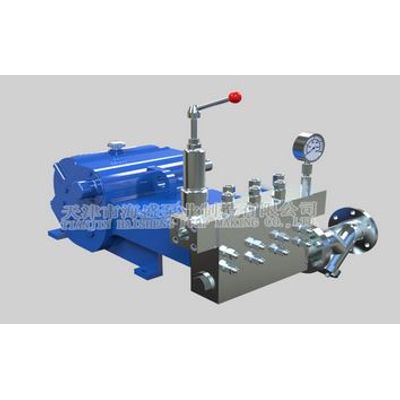

Tianjin Haisheng - Model Type HS110 -High Pressure Plunger Pump

The pump is equipped with in-built chevron gear deceleration device (This device is authorized with the patent of utility models, No. ZL201320288377.2). It has the properties of high transmission efficiency, low noises, stable operation, small size and compact construction. During the running, high-speed shaft can automatically adjust in horizontal direction, which makes it has balanced and reliable transmission, low friction coefficient, high lubrication, low temperature rising at power end, long-time continuous operation, etc. The max.crankshaft thrust force is 38KN.
