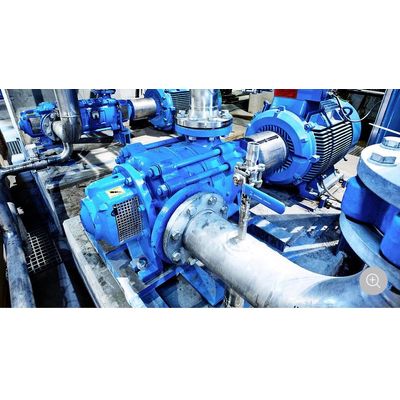

Andritz - Model MP Series -High-Pressure Pumps
ANDRITZ high-pressure pumps are designed for highest flexibility. Numerous horizontal and vertical models allow for efficient building designs. A variety of material and sealing versions guarantee optimal adaptability to the medium. Different hydraulic systems for each pump size enable a selection at the best efficiency point. These pumps are used for various high-pressure municipal and industrial applications, e.g. water supply, irrigation, circulation, boiler feed, and drainage.
The high standard of the ANDRITZ multi-stage high-pressure pumps from the MP series is based on decades of experience in designing hydraulic machines and on extensive process know-how. The pumps are installed for conveying clean and slightly contaminated media such as cold and hot water, condensate, deionized water, oils, and suspensions.
The high-pressure pumps in the MP pump series are designed according to a strict modular system. With this system, different design variants can be supplied according to the customer‘s requirements quickly, easily and economically, without customizing and using a minimum number of components. For more information on our high-pressure pumps from the MP series please have a look at our brochures in the sidebar or contact us directly.
- Design: multi-stage, closed impellers
- Head: up to 950 m
- Flow rate: up to 400 m³/h
- Pressure: up to 100 bar
- Temperature: up to 160° C
- Power: up to 600 kW
- Horizontal design with a closed impeller and external bearing assemblies on both sides
- Axial heat expansion by the pump rotor is absorbed internally without influencing the coupling alignment
- Easy maintenance
