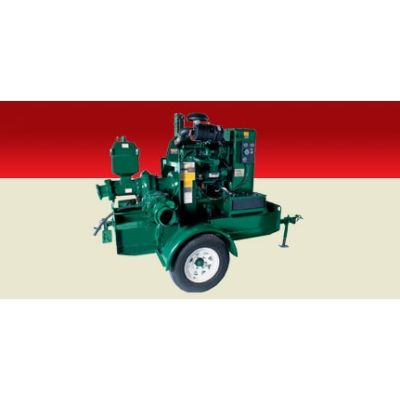

High Pressure Pumps

Produces enough pressure to eliminate multiple pumps. Operates in flooded conditions. Unattended operation.

Performance

• Suction Size: 4` – 10`
• Discharge Size: 3` – 8`
• Max Flow Range: 800 gpm – 5,200 gpm
• Suction Lift: Up to 28`
• Max Shut Off Head Range: 285` – 490`
• Max Solids Size: 1/2` – 3.35`
• Max Operating Temp: 150º F – 175º F
• Fuel: No. 2 Diesel
• Run Time per Full Tank: 8 – 24 hours
• Fuel Capacity: 60 gallons – 235 gallons
• Operating Speed: 1,000 rpm – 2,400 rpm

General Information

• Weight: 3,300 lbs – 7,900 lbs
• Standard Mount: Trailer or skid
• Prime Mover: Diesel engine and electric motor
• Casing Material: Cast iron and stainless steel
• Seal Type: Silicon carbide and tungsten carbide
• Safety Features: Coupling guards; high water temperature and low oil pressure shutdowns on diesel engines.
