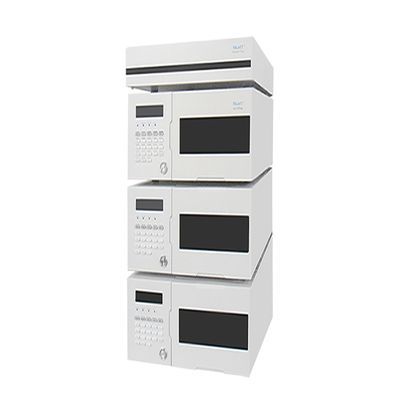

Wuxi Create - Model LC-60Tvp -High Pressure Solvent Delivery System

FromWuxi Create Analytical Instrument Co., Ltd

SHARE

LC-60Tvp Liquid Pump was developed on the basis of STI501 Liquid Chromatography, adopted advanced technology and design of the United States. LC-60Tvp Liquid Pump can be connected to any sort of Liquid detector, so widely applied in the field of HPLC. laboratory chemical reaction infusion and chromatography and etc.

Most popular related searches

self-priming pump

liquid chromatography

laboratory chemical

liquid chromatography system

field laboratory

chromatography system

chromatography flow

Unique pool structure ensures the accuracy and sensitivity of the instrument
Easy maintenance and service for all wetted parts
High-quality structure
Long life deuterium lamp
Improve the maximum limited pressure by precise tranducer
Accord with GMP/GLP, ISO9001,21 CFR Part?with Surwit CDS(Software)
Online Washing Device while analysis
Self-priming pump head requires no manual priming
Available with micro, analytical, semi-prep, and prep pump heads
Programmable solvent compressibility compensation
Easy maintenance and service for all wetted parts

Flow Range: 0.001-9.999ml/min
Delivery method: Double piston(Main & Auxiliary)
Pump head: 10ml SST/Peek analytical
Accuracy: ±1% or ±2µL/min, whichever is greater, ±1% or± 1µL/min, whichever is greater(Micro)
Flow rate setting: 0-0.10ml/min. 0.010inc. 0.10-0.90ml/min 0.010inc. 1.0ml/min +0.10inc
Precision: 0.1% RSD
Pmax: 9999psi
System connections: 1/66’’ capillaries
Dimensions: H60mm*W260mm*D420mm
Weight.: 11kg
Power input: 85 to 264VAC, 47 to 63 Hz, 60 Watts
Display: 300mm
