Harben Inc - a subsidiary of Flowplant Group Ltd
Harben - Model Electric A-Frame 4010 EA -High-Pressure Water Jetting Unit

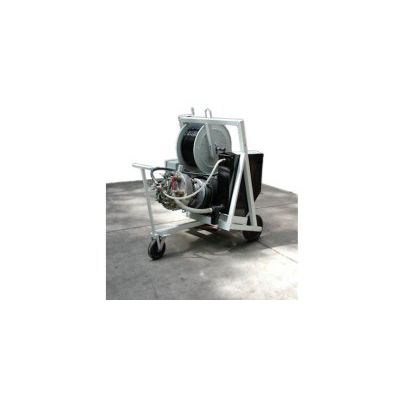

Harben Electric A-frame series high-pressure water jetting unit, incorporating a 10-gallon steel water header tank with float valve assembly, mounted on a 3 wheel cart to allow flexible placement of the unit. A 300 ft. capacity manual rewind hose reel will be fitted. Units are available with various pressures and flow to accommodate a variety of tasks.
Most popular related searches
high-pressure water jetting system
high-pressure water jetting
water jetting system
high-pressure water
high-pressure jetting system
water jetting
jetting system
piston diaphragm pump
electric high-pressure water jetting system
float valve
- Performance : Up to 4,000 psi; up to 10 gpm
- Pump : Harben 6 Cylinder, 22mm Radial Piston Diaphragm Pump including flow control selector valve, fluid damped pressure gauge and plastic safety rupture disc. The pump is direct driven through flexible couplings.
- Motor : 30 hp, 460 volt, 3 phase, 60 Hz, TEFC, `C` face electric motor and starter operating at 1,200 rpm
- Frame : Fabricated from sectional steel tubing, complete with two 12” wheels and one 8" caster for maneuvering the cart.
