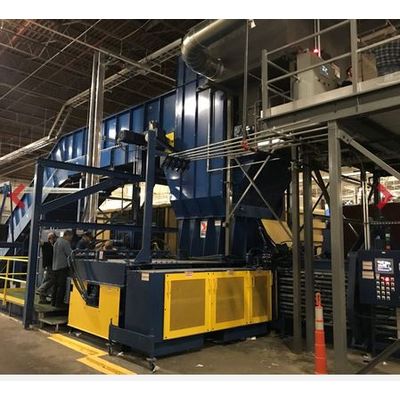

ABC - Model OCC - 8072HSL-11225 -High Production Horizontal Baler
American Balers model 8072HSL-11225 horizontal baler is designed with a big 80″ x 72″ feed opening to handle bulky OCC fed from any direction with one or more conveyors. The 8072HSL-11225 with a high speed side ram bales more material per ram stroke resulting in increased OCC hourly production and produces an “export” bale size that can be easily loaded into sea containers.
Most popular related searches
horizontal baler
auto tie horizontal baler
replacement filter element
tank breather filter
baler
paper baling
tank breather
horizontal auto tie baler
paper bale
single ram baler
- Production Volume: Up to 47,000 cubic feet per hour
- Nominal Feed Opening: 80″ x 72″
- Maximum Ram Force: 332,620#
- Expanded Bale Size: 44″ x 44″ x var
- OCC Production Capacity: up to 30 TPH
American Baler builds the horizontal single ram OCC baler with the following features that are suitable for most cardboard paper baling applications:
- several charge box opening lengths
- 29”, 42” 43” and 48” charge box widths
- 6”, 7”, 8”, 9” 10”, 11”, & 12” cylinder bore sizes for additional bale density and shearing force
- 9 power unit sizes for faster ram speed and additional hourly production
- E-PAC TEFC Motor 460/3/60 – XL Starting
- IEC Componentry
- NEMA -12 Electrical Enclosure
- UL & CUL Listed Electrical Components
- Allen Bradley CompactLogix PLC with 6″ Touchscreen operator interface
- Pushbutton Controls
- Infrared Cycle Control
- Single electrical panel on 20/30HP models
- Thermostatically controlled Air-to-Oil heat exchanger
- Trunnion Mounted Main Cylinder
- Manifold Hydraulics with Regen Circuit
- 10 Micron filtration with replaceable filter element
- Replaceable tank breather filter
- Single Cylinder Bale Tension System with 4-Way Free Floating Design
- Bushed tension links with grease fittings (10” models only)
- Swing-Away Hydraulic 5-Wire Auto-Tier Mounted on Poly-Clad Wheels
- Box Type (Fixed) 100# Wire Holders
- Replaceable Hardox 500 Floor Liner
- Feed Chute w/Gasketed Door & Window
- Oil heater
- 3HP conveyor controls
- High level infrared
- Hot Oil Indicator & Shutdown
- Low Oil Indicator & Shutdown
- Remote VPN Internet Access
- 4′ Bale Run-out Table
- Adjustable Dust Seals on Platen Sides & Top
- 8 Spring Loaded Retainer Dogs (4 each side)
- 3-Stage Bolt-in Serrated Shear blade (if applicable)
- Anchor clips
- Surface is painted with an industrial primer and 2 coats of industrial enamel
