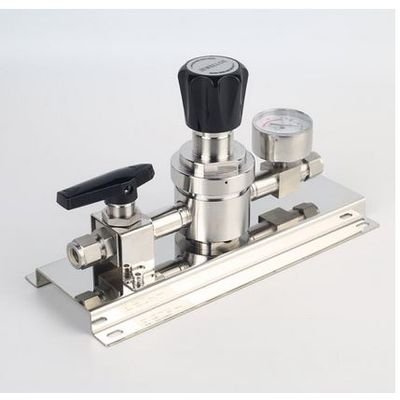

Jewellok - Model JSR-1ETG-BV Series -High Purity and Industria Gas Stick Assemblies Precise Pressure Control Gas Systems
Product Features: Wall-mounting tapping points. VSR-1EL series single-stage regulator. Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0. Stainless steel 316L body and bonnet for corrosive gases. Modular design. Diaphragm type shut-off valves. Suitable for inlet pressure up to 100 bar. Tested for use with oxygen.
Most popular related searches
shut-off valve
diaphragm shut off valve
corrosive gas
gas mixture
diaphragm valve
calibration laboratory
PTFE diaphragm valve
PTFE valve
laboratory system
gas controller
- Component Testing
- Calibration Systems
- Laboratory Pressure Control
- High Pressure Samping Systems
- Service & Test Equipment
- Type: single-stage
- Inlet pressure P1: max. 100 bar
- Outlet pressure P2: 2/4/10/20/50 bar
- Materials
- Body regulator and valves: see ordering into
- Valve seat (regulator): PCTFE
- (shut-off valve): PTFE
- Diaphragm (regulator): Hastelloy® C276
- Filter: SS 316L
- Temperature range: -30oC to +74oC
- Leak rate: (to atmosphere) 1×10-8 mbar I/s He
- (via seat) 1×10-6 mbar I/s He
- Flow capacity: Cv=0.07
- Weight: 4.1~5.7kg
