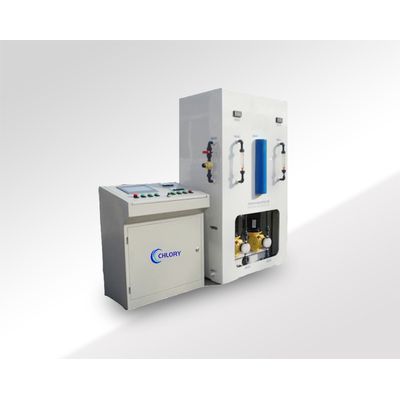

Chlory - High-Purity Chlorine Dioxide Generator (Sodium Chlorite)

How it works

5NaClO₂+4HCl →4ClO₂+5NaCl+2H₂O

Composition of RC series chlorine dioxide generator

1. Feeding system
2. Reaction system
3. Control system
4. Mixed absorption system
5. Security system
6. Residual liquid automatic processing system

• Sodium chlorite: (HG/T3250-2001 first grade industrial product, content ≥78%);
• Hydrochloric acid: (GB320-2006 industrial first grade product, concentration ≥31%)
• 2.2g of sodium chlorite, 6.75g of hydrochloric acid (to produce 1g of chlorine dioxide)

1. Using sodium chlorite and hydrochloric acid as raw materials to prepare liquid high-purity chlorine dioxide disinfectant, the purity of chlorine dioxide is ≥95%, and the conversion rate of sodium chlorite is ≥95%.
2. The reactor adopts multi-grade industrial titanium-based alloy and fluoroplastic materials, with a long service life.
3. The material transportation adopts the international famous brand precision metering pump and constant back pressure device, so the raw material measurement is accurate.
4. The control system adopts intelligent or PLC control system, which is operated by touch keys.
5. Equipped with RS485 interface, which can realize remote transmission and remote monitoring of equipment operating status signals

1. Wastewater disinfection (municipal, hospital): It can kill most of the bacteria in the water, such as E. coli and various types of streptococci.
2. Water purification and disinfection: Killing algae in water
3. Fruit and vegetable washing and disinfection.
