Yamada America, Inc.

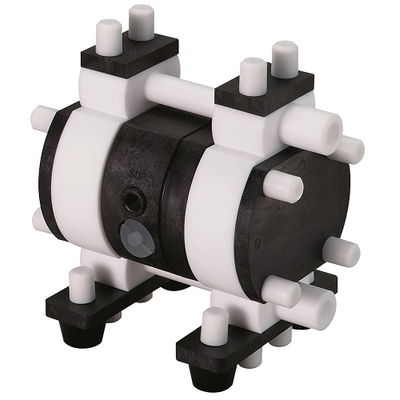

Yamada - Model DP-5F -High Purity Diaphragm Pump
1/4" NPT or 3/8" Flaretek® liquid connections. Maximum flow up to 2.91 gal/min. Internal silencer. End-user maintainable. Self-priming. Field-proven design. Clean room manufactured, DI water tested,. nitrogen purged, and double bagged. Flat check valves standard. Dampeners for F-Series PTFE Pumps.
Most popular related searches
check valve
air intake
nitrogen purging
cleanroom
water testing
diaphragm pump
check standard
exhaust muffler
cleanroom engineering
cleanroom testing
Pump Material
- Casing: PTFE
- Manifold: PTFE
- Body (non-wetted): Ryton (PPS resin)
Port Dimensions
- Liquid Inlet & Discharge: 3/8" Flaretek or 1/4" NPT
- Air Inlet: Female 1/4" NPT
- Air Exhaust (with muffler): Female 3/8" NPT
Check Valve: Flat
Air Supply Pressure: 30 to 70 PSI
Discharge Volume: 0.0034 gal
Maximum Liquid Temperature: 176° F (80°C)
Maximum Cycles/Minutes: 855
Net Weight: 7.5 lbs. (3.4 kg)
