ACDC Fan - Model GD2510 Series -High-Quality Cooling Fans

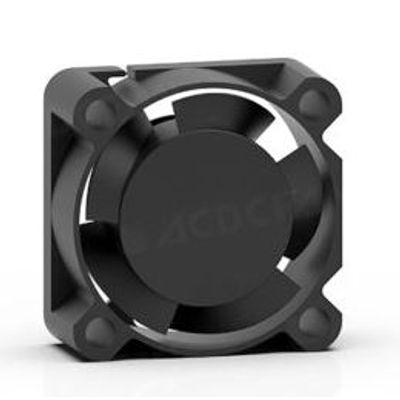

The GD2510 Series of cooling fans by ACDC measures 25x25x10mm and is offered with die-cast aluminum housing in either black or white coating. These fans feature metal impellers and are designed to operate in a temperature range of -30 to 60 degrees Celsius. They are available in operational voltage ranges of 110V (±10%) or 220V (±10%) with a maximum dielectric strength of 5mA at 1500V for one second, which ensures impedance protection. The fan frames and impellers are made from thermoplastic PBT UL 94V-0 material, providing robustness and reliability. Two bearing systems—ball bearing and sleeve bearing—are available, with operational temperature ranges of -30 ~ 70°C for ball bearings and -10 ~ 55°C for sleeve bearings. The expected service life reaches up to 70,000 hours at 40°C for ball bearings. With dimensions fitting compact spaces, these fans integrate well into various applications requiring reliable cooling solutions.
