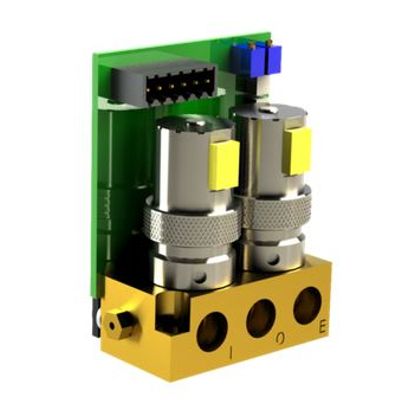

Proportion - Model MPV Series -High Resolution Electronic Pressure Regulator
The MPV ultra high resolution, manifold mountable electro-pneumatic closed-loop proportional pressure control valve uses variable orifice valves, eliminating the digital steps of traditional ON/OFF solenoids.
Most popular related searches
pressure regulator
pressure control valve
control valve
high-pressure valve
proportional valve
microfluidic
- Ideal for very sensitive applications such as leak testing at low pressures, dispensing in micro units and microfluidics applications
- Mount on DIN rail, panel or up to 12 stations on a sub-base manifold
- Works well in constant, low-flow applications too
- Pressure Range: Vacuum thru 150 PSI, 10.3 Bar
- Max Resolution: ±0.005% F.S.
- Accuracy: ±0.2% F.S.
- Repeatability: ±0.02% F.S.
- Max Flow: Based on inlet valve orifice size
- Port Size: 1/8″ NPT (BSPP Available)
- Durability: Immune to shock & vibration (up to 20 Gs)
- Operating Temps: 32-158°F (0-70°C)
- Filtration: 40 Micron
