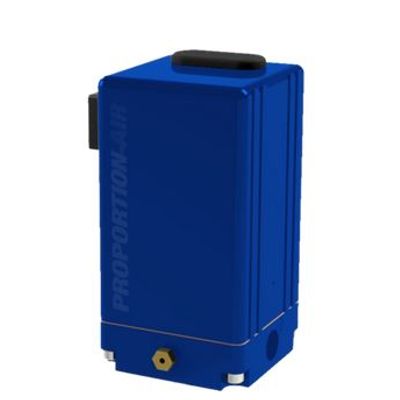

Proportion - Model QPV Series -High Resolution Pressure Regulator
QPV ultra high resolution electro-pneumatic closed-loop proportional pressure control valves are ideal for very sensitive applications such as leak testing at low pressures, dispensing and microfluidics flow control.
Most popular related searches
pressure regulator
pressure control valve
flow control
control valve
pressure flow controller
proportional valve
microfluidic
- Can be calibrated as low as 0-2 inches of water column
- Resolution (pressure steps) as high as ±0.005% of full scale calibration in single loop configuration
- Ideal for constant, low-flow applications too
QPV pressure regulators use a variable orifice valve, which eliminates the digital steps of traditional ON/OFF solenoids.
Like most of our products, the QPV can be modified in numerous ways to meet the most demanding applications. Customizations may change the price of the product. Get a quote for a product customized to your exact needs using the Request Quote tab below.
- Pressure Range: Vacuum thru 150 PSI (10.3 Bar)
- Accuracy: ±0.2% F.S.
- Repeatability: ±0.02% F.S.
- Resolution (max): ±0.005% F.S.
- Max Flow: Based on inlet valve orifice size
- Port Size: 1/8″ NPT (BSPP Available)
- Durability: Immune to shock & vibration (up to 25 Gs)
- Operating Temps: 32-158°F (0-70°C)
- Filtration: 40 Micron
