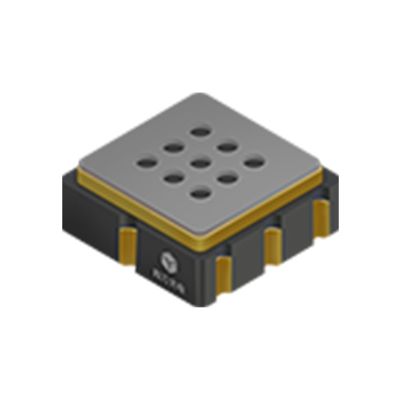

Cubic - Model VM-1001 -High Sensitivity and Consistency VOC Gas Sensor
The VOC gas sensor VM-1001 adopts advanced broad spectrum and indirectly heated structure. The sensor consists of a ceramic heater coated with nanoscale semi-conductive material MOX and doped with appropriate microelement, it is very sensitive to formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol, cigarette smoke and other volatile organic components. The sensor has good consistency and high sensitivity after aging test, debugging, calibration.
- High sensitivity and consistency
- High integration module
- Temperature compensation algorithm
- Low power consumption
- Fast response
- Measuring gas: Formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, cigarette smoke, etc
- Responding time: ≤5s
- Preheating time: ≤120s
- Recovering time: ≤20 seconds
- Working temperature: 0~50℃,0~ 95% (non-condensing)
- Storage temperature: -20~60℃ 0~ 95% (non-condensing)
- Power supply: DC 5±0.2V
- Working current: ≤100mA
- Output: 0-3 levels
- Lifespan: ≥10 years
- Connector: XH2.54-4 vertical socket
Air Purifier
Air pollution contributes to millions of premature deaths throughout the world each year. In China, rapid industrialization has wrought intense levels of air pollution that poses a serious threat.
Fresh Air System Controller
For the purpose of achieving energy saving and comfort environment, and with wide spread of internet+ and IoT, especially CO2 and particle sensors development, HVAC system is developing very fast.
Air Quality Monitor
With the improvement of people`s living standards, more and more people begin to pay attention to the air quality of their living environment.
