Packo - Model SFP2 & SFP3 Series -High Shear Pump
FromPACKO INOX LTD

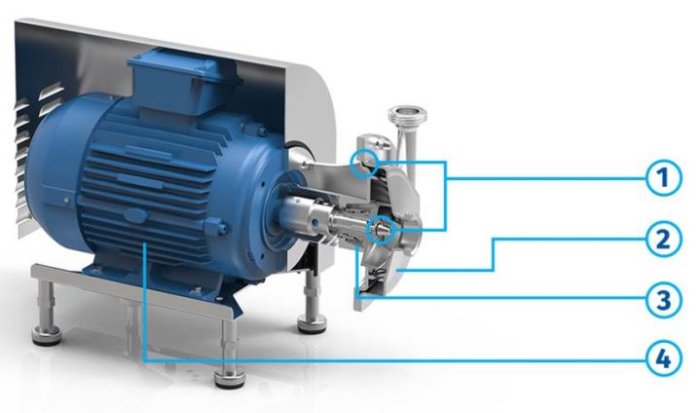

High shear pump with open or closed impeller and patented stator for high flow and pressure. The shear is generated between the rotor and an innovative and optimized perforated stator. The shear can be optimized and increased by raising the speed of rotation. Shear rates up to 100.000 s-1 can be achieved at a maximum speed of 3600 rpm.
Most popular related searches
High shear pump

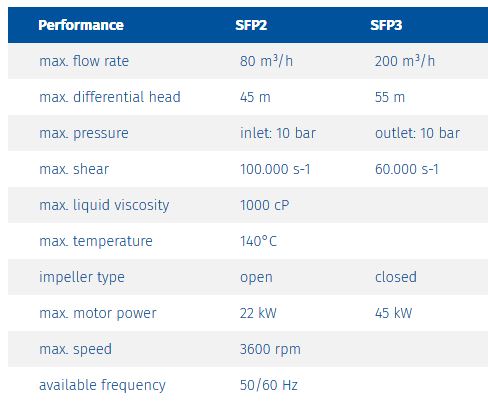

- Max. flow: 200 m³/h
- Max. head: 55 m
- max. product viscosity: 1000 cP
- max. motor power: 45 kW
- Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
- Pressed stainless steel in 2B quality plate, extremely smooth
- Large seal cavity to clean mechanical seal properly
- Monobloc execution with std. IEC motors
- Shear rates up to 100.000 s-1
- Highest efficiency on the market, energy saving
- Use of std. components
- Self pumping
- Hygienic design, so easy to clean
- Easy installation and maintenance
- Very quiet operation
The Packo shear mixer pump is mainly used for in-line mixing, homogenisation and dispergation applications.
Mixing of two liquids:
- with a large different specific gravity,
- having a large different viscosity or
- that are difficult to mix.
Also dispersing of:
- solids in liquids and
- dispersion of gas in liquids.
We also offer static and dynamic mixers for mixing liquids.
