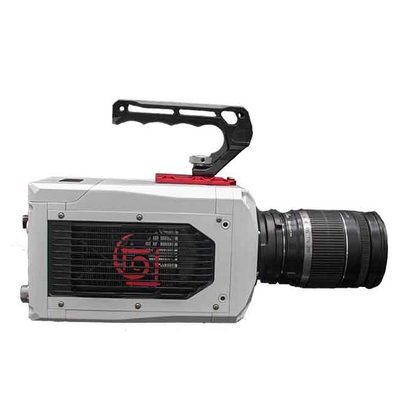

Revealer - Model NEO 20 Series -High Speed Camera
320GB internal RAM storage. 150ns exposure time. 10Gb/Gb Ethernet. 25000fps at 1.3Mpx.
- Model: NEO 20
- FPS @Resolution: 20000 @1280×1024
- Depth: 8/10/12bit
- Pixel Size: 20μm×20μm
- PIV mode: ?
- Memory: 320GB
- Connectivity: 10Gb/Gb Ethernet
- Video out: 3G-SDI
- Size W×H×D: 125×125×210mm
- Weight: 4200g
- SDK: ?
