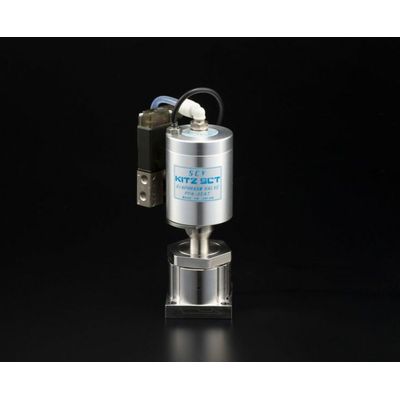

KITZ SCT - Model 200C -High-Speed, High-Durability Valves
High-Speed, High-Durability Valves 200C are designed to provide robust and reliable performance for demanding industrial applications. These valves are notable for their high-speed actuation and significant durability, ensuring long-term functionality even under rigorous conditions. The wetted area materials are carefully chosen to withstand various chemicals and fluids, making them suitable for a wide range of operational environments. Users should adhere to specified precautions to maintain optimal performance and safety. The product selection process is streamlined via a digital catalog and parametric search features, allowing users to find the appropriate model based on specific criteria. This product line also includes detailed specifications and product code keys to aid in precise identification and ordering. For normally open types, customers are advised to contact a sales representative.
The TDF series is KITZ SCT's high speed/high durability valve perfect for ALD and similar type processes requiring pulsing. The actuation time of the TDF valve's sealing diaphragm is 5 milliseconds, and full cycle speed is 18 milliseconds. The valve's cycle life rating is 100 million cycles.
- Size : 1/2″
- Cv at 220℃ *1 : 0.5
- Maximum Operating Pressure : 101.5psig (0.7 MPa(G))
- Wetted Area Volume : 0.1172in3 (1.92 cm3 (C-seal, 2-port))
- 0.1532in3 (2.51 cm3 (C-seal, 3-port))
- Fluid Temperature : 80℃～220℃ *2
- Atmospheric Temperature : 20℃～130℃
- 20℃～70℃
- (with sensor and solenoid valve installed)
- Response Speed *3 : 18±2 ms
- Leak Rates (Room temperature
- when shipped) : Across the Seat He Leak Rates : ≤ 1×10-9 sccs (≤ 1×10-10Pa·m3/sec)
- Inboard He Leak Rates : ≤ 1×10-9 sccs (≤ 1×10-10Pa·m3/sec)
- Actuation pressure : 65.3-87.0psig (0.45 ‒ 0.6 MPa(G))
- High-speed opening/closing, and high response stability
- Compatible with high-temperature fluids
- Stable Cv value
- High cycle life
- SUS316L, SUS316LE (Double melt material)
- PFA
- Cobalt alloy
- The valves are designed to be used under atmospheric pressure. Usage such as under vacuum vessels are not guaranteed.
- For high temperature applications, please select appropriate material for air-fittings and tubes to assure proper performance
