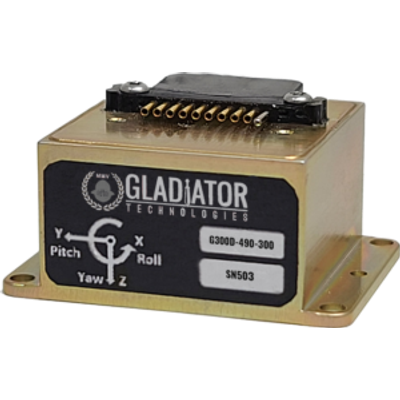

Gladiator Technologies - Model G300D -High-Speed Three-Axis MEMS Gyroscope
The G300D is a high-performance MEMS gyroscope designed by Gladiator Technologies, delivering low noise and high speed across its three axes. Engineered for precision stabilization and rotation measurements, it features VELOX™ high speed processing that ensures seamless digital output without compromising inertial capabilities. The gyroscope is compact, measuring only 0.6 cubic inches, and is factory calibrated to endure a wide temperature range from -50°C to +85°C, along with shock and vibration conditions. It boasts an angular random walk of 0.0017°/s/√Hz, a bandwidth up to 600 Hz, and operates with a message delay as low as 20µs. Additionally, the device is capable of a data rate of 10 kHz. It is powered within a 4.5 to 5.5 V range, consuming between 250mW and 320mW, and weighs in at 19 grams. Designed for integration ease, it offers flexibility in data format and bandwidth, ensuring compatibility with diverse technical applications.Low noise, high speed, three-axis gyroscope.
The G300D is Gladiator Technologies’ high speed, three-axis MEMS gyroscope equipped with low noise sensors, VELOX™ high speed processing and user configurable firmware. At only 0.6 cubic inches, the G300D gyro comes factory calibrated over the full temperature range, conditioned over environments and is ideal for precision stabilization and rotation measurement applications.
0.6: Cubic Inches
0.0017°/s/√Hz: ARW
600 Hz: Bandwidth
20µs: Message Delay
3.5°/hr: In-Run Bias
10 kHz: Data Rates
- Low Noise. High Speed.
- VELOX™ High Speed Processing
Gladiator Technologies’ cutting edge data processing suite enabling filtered digital output without sacrificing inertial performance.
- Factory Calibrated
Gladiator Inertial products are factory calibrated, modeled and conditioned over temperature, -50°C to +85°C, shock and vibration.
