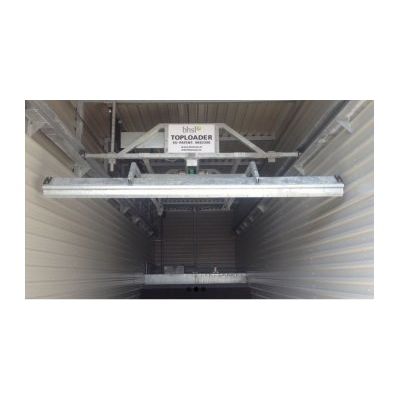

BHSL - High-Speed Toploader for Woodchip Handling

Carriage Dimensions: 1074mm (H) X 3450 (L) X 3200mm – 3700mm (W). To Suit Bunker widths: 3800mm – 4100mm. Toploader Weights: See “Weights”. Motors Manufacture: Nord. Motors Power Rating: Transverse Motor 2.2 Kw. Belt lifting Motor 1.5 Kw. Motor Control: Variable speed Controllers. Sensors: IFM & Schneider. PLC: Allen Bradley. Throughput: 2625Kg/Hour (Based on woodchip with 275kg/m³ Density).
No. of Cycles/Hour: 15 Cycles based on a 25 Meter Bunker. Toploader Operating Speeds: Carriage speed 0.3M/second. Belt Lifting Speed 0.4M/second. Toploader Steel Profile: See “Profile” . Toploader Finish: Galvanised
