MicroSensor - Model MPM281 -High Stable Pressure Sensor
The MPM281 series offers a high-stable piezoresistive pressure sensor tailored for precision measurements across various industrial and medical fields. This OEM pressure element features a robust 316L stainless steel construction, ensuring durability in harsh environments. Utilizing advanced diffused silicon technology, the sensor provides exceptional sensitivity and enables precise pressure-to-electrical signal conversion. With its broad temperature compensation range from -10? to 80?, the MPM281 is apt for conditions with significant temperature fluctuations, such as outdoor oil field applications. Its long-term stability is assured with an accuracy of ±0.2% FS/year, making it ideal for use in petrochemical monitoring, inkjet printing, and flow compensation. Its design supports multi-medium measurements, catering to the demands of process automation and medical equipment.

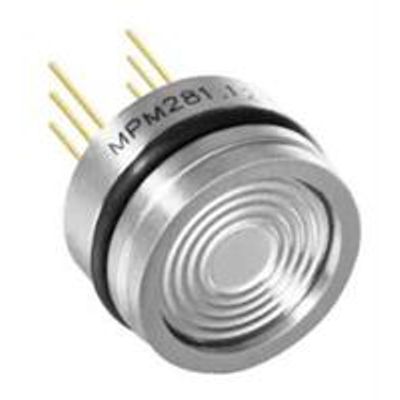

The MPM281 high stable pressure sensor is an isolated, precision-compensated OEM piezoresistive pressure measurement element. Sensitive components use patented high-stability diffused silicon components. The product is packaged in a 316L all-stainless steel structure with an outer diameter of ?19mm. After precision trimming, the temperature compensation and zero point deviation correction of the imported chips are carried out in a wide temperature range through the thick film circuit. The wide temperature compensation range can reach -10?~80?.
MPM281 piezoresistive pressure sensor is used in various measuring instruments to realize the precise conversion of pressure to electrical signals. It can also be used in petrochemical pipeline monitoring, inkjet printer pressure monitoring, flowmeter pressure compensation, medical equipment and other fields. It is also suitable for industrial automation fields where the site temperature changes greatly, such as oil field sites exposed to the outdoors for a long time.
- Φ19x11.5mm
- 0bar~0.07bar…1000bar
- -10~80? Compensated
- High stable pressure sensor MPM281 has a stability error of ±0.1 % FS/year. It outputs an mV singal...
High stable pressure sensor MPM281 has a stability error of ±0.1 % FS/year. It outputs an mV signal within a wide range of 1 psi to 15000 psi for OEM application. The pressure sensor is with Φ 19x11.5 mm construction with -10~80? temperature compensated,
- Φ19mm standard OEM pressure sensitive element
- High sensitivity, large signal
- Wide temperature compensation, precise conversion
- Multi-medium measurement compatibility
- Long-term stability up to ±0.2%FS/year
- Industrial process control
- Level measurement
- Gas, liquid pressure measurement
- Pressure checking meter
- Pressure calibrator
- Liquid pressure system and switch
- Cooling equipment and air conditioning system
- Aviation and navigation inspection
Electric Performance
- Power supply: ≤2.0mA DC; ≤10V DC
- Electric connection: φ0.5mm Kovar pin or 100mm silicon rubber flexible wires
- Common mode voltage output: 50% input (typ.)
- Input impedance: 3kΩ～8kΩ
- Output impedance: 3.5kΩ～6kΩ
- Response (10%～90%): <1ms
- Insulation resistor: 100MΩ, 100VDC
- Overpressure: 1.5 times FS
Construction Performance
- Diaphragm: stainless steel 316L
- Housing: stainless steel 316L
- Pressure leading tube : stainless steel 316L
- Pin: Kovar
- O-ring: Viton
- Net weight: ～16g
Environment Condition
- Shock: no change at 10gRMS,（20～2000）Hz
- Impact: 100g，11ms
- Media compatibility: the gas or liquid which is compatible with stainless steel and Viton
Basic Condition
- Media temperature: (35±1)℃
- Environment temperature: (35±1)℃
- Shock: 0.1g(1m/s2)Max
- Humidity: (50%±10%)RH
- Local air pressure: (86～106)kPa
- Power supply: (1.5±0.0015)mADC
