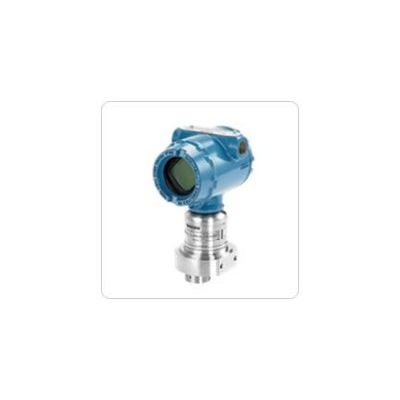

Rosemount - Model 3051S -High Static DP Transmitter

What if you could...

• Accurately make critical measurements in the harshest conditions?
• Ensure accurate insight into your process in any installation at any time?
• Meet stringent weight and installation cost requirements?

Accurately make critical measurements in the harshest conditions

• Emerson’s Rosemount 3051S high static differential pressure transmitter incorporates the innovative, compact, coplanar SuperModule design, capable of withstanding pressures of up to 15,000 psi (1,034 bar)

Ensure accurate insight into your process in any installation at any time

• The all-welded hermetic stainless steel design delivers the industry’s highest field reliability and performance with 5-year stability and 0.055% accuracy, all backed by a 15-year limited warranty

Meet stringent weight and installation cost requirements

• Emerson’s patented compact coplanar transmitter design is up to 60% less weight than today’s high pressure transmitters

Reduce Installation and Maintenance Costs

• Reduce installation and wiring costs with a 2-in-1 pressure and temperature measurement
• Make more accurate measurements for liquid and gas applications
• Callendar-Van Dusen temperature sensor-matching can increase flow accuracy by 80%

Protect Loop Integrity with Power Advisory Diagnostics

• Gain insight from the process to the host with unmatched diagnostic coverage
• Prevent on-scale failures by diagnosing electrical loop issues with Power Advisory diagnostics
• Extend diagnostic coverage to Safety Instrumented Systems with IEC 61508 SIL 2/3-capable design

Quickly Deploy New Measurements with Wireless Capabilities

• Quickly deploy new pressure and flow measurements in 70% less time
• Eliminate wiring design and construction complexities to lower costs by up to 60%

Features & Benefits

The SuperModule is the foundation of the Rosemount 3051S High Static Differential Pressure Transmitter.

Digital Bus Output
Enables the scalable architecture with HART, Fieldbus, Wireless, and advanced functionality

Hermetic Glass Seal
Protects sensor and electronics from moisture and field contaminants

All-welded, Hermetic 316 SST Housing
Designed to withstand the harshest of environments, backed by 5 year stability, 15 year limited warranty

Patented Electronics Technology
Fastest dynamic response for improved performance and advanced diagnostics

Advanced Saturn Dual-Capacitance Sensor
Incorporates extra sensor to enhance performance and expand diagnostic capabilities

Coplanar Module
Reduced weight, complexity, and potential leak points compared to traditional bi-planar instruments

Coned and Threaded Process Connection
Robust Autoclave connection with C-276 wetted materials ensures reliable measurement up to 15,000psi

Specifications

Measurement Type: Differential and multivariable pressure
Output: 4-20 mA HART, WirelessHART™, FOUNDATION™ fieldbus
Reference Accuracy: ± 0.055% of span
Maximum Static Line Pressure: Up to 15,000 psi (1,034 bar)
Long Term Stability: Up to 5-year stability
Warranty: Up to 15-year warranty
Advanced Diagnostics Suite: Statistical Process Monitoring(SPM), Power Advisory, Status Log, Variable Log, Advanced Process Alerts, Service Alerts, and Time Stamp capability
