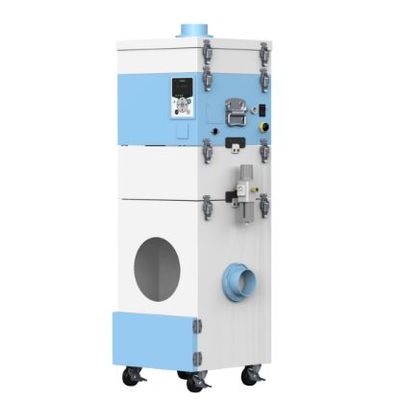

Chiko - Model SHP Series -High Static Pressure Dust Collector

Equipped with high pressure brushless motor
This device has a high-pressure brushless motor mounted, ensuring high power dust collection with performance quality maintained at a high level even when used with a thin nozzle or suction port. (Recommended for substrate divider lines and battery production lines with high dust volumes)

Large inspection window
You can check the dust removal efficiency, suction status, filter condition etc. from the large inspection window.

Dust pan
A large volume of dust can be collected in the dust pan when collecting with multiple branches. Dirt and trash can disposed of easily, even when present in large quantities.

Remote cable

(sold separately/model: Using MT-173-8 (3 m) enables remote operation of peripheral equipment.

1. Operation input signal
2. Operation pressure signal (DC1-5V)
3. Filter clogging signal
4. Remote-control operation switching input signal
5. Operating signal
6. Abnormality signal
7. Change of operating level input signal (DC0-5V)
8. Gnd

Primary filterA conductive filter is installed as standard to prevent the generation of static electricity. The collection efficiency is 0.5 μ 99.9% or larger.
