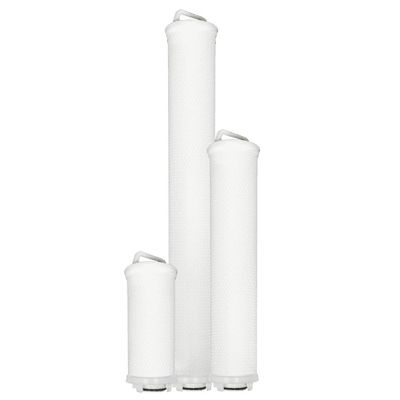

Fil-Trek - Model High Flow Series -High Surface Area, High Retention Pleated Filter Cartridges
Ideal for low flow rates the 700 Series offers high dirt-loading capacity and extends filter life and time between changeouts.
Most popular related searches
high flow cartridge filter
high flow filter cartridge
filter cartridge
cartridge filter
pleated filter cartridge
pleated filter
surface area pleated cartridge
pleated cartridge
bag filter cartridge
bag filter
- Double o-ring seal, reducing the risk of bypass.
- Absolute rated and available in microns ranging from 1 to 70. All materials comply with FDA Title 21.
- 6.5″ OD, 3″ ID
- 99.9% absolute rated
- Outside to inside flow
- Comparable to the 3M 740 series filter.
Materials of Construction
Media:
- Polypropylene
- Polyester
- Microglass
- Cotton
- Cellulose
- Nylon
- Nomex
Outer Support:
- Polypropylene
- Polyester
- Nylon
- Steel
Core:
- Polypropylene
- Tinned steel/Stainless Steel
End Caps:
- Polypropylene
- Microglass
- Nylon
- Steel
Available Sizes/Lengths
Outside Diameter:
- 6″ (15.2 cm)
Inside Diameter:
- 3″ (7.6 cm)
Lengths:
- 20″ (50.8 cm)
- 40″ (101.6 cm)
- 60″ (152.4 cm)
- 80″ (203.2 cm)
Temperature Limit
- Polypropylene -180°F (82°C)
- Polyester – 240°F (115.5°C)
- Microglass – 300°F (149°C)
- Cellulose – 300°F (149°C)
- Cotton – 300°F (149°C)
- Nylon – 340°F (171.1°C)
- Nomex – 400°F (204.4°C)
Maximum Differential Pressure
- 50 PSID (3.4 bar)
Recommended Change Out Pressure
- 35 PSID
- Micron Ratings1 – 70 micron
- Filter EfficiencyAbsolute 99.9%
