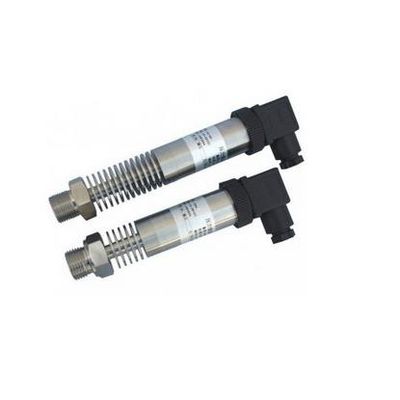

Brans - Model BST106 -High Temperature Air And Water Pressure Sensors
The BST106 is an high temperature ASIC-compensated, high quality, stainless steel. industrial pressure transducer designed for use in the measurement of liquids and gases. This products could operate in high temperature environment. Intended for mid to high volume applications requiring excellent performance, the BST106 succeeds by offering highly competitive pricing. Complete with a fully welded stainless steel housing, high shock and vibration and EMI/RFI protection, the BST106 will survive in the most extreme conditions. Many elements of this industrial pressure transducer are customizable to meet customer packaging and performance requirements.
Most popular related searches
shock and vibration
pressure sensor
water pressure sensor
pressure transducer
HVAC equipment
road construction
hazardous area
water management
pressure and temperature sensor
air pressure sensor

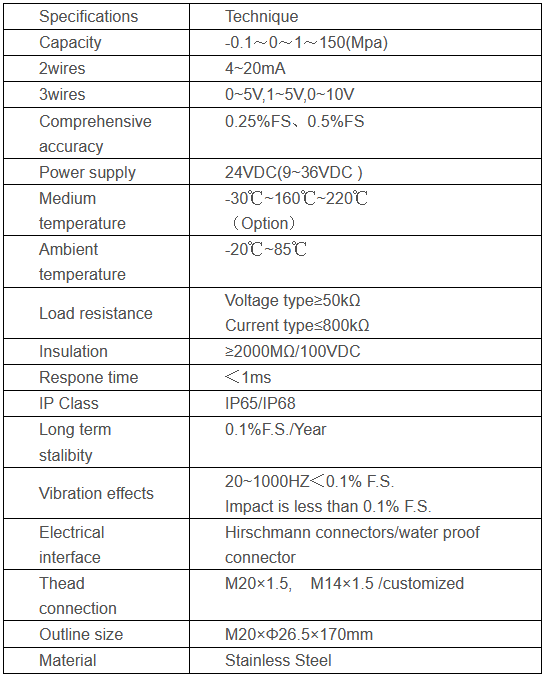

- Material: Stainless Steel
- Cpacity: -0.1~0~1~150(MPa)
- Size: M20×Φ26.5×170mm
- Operate temperature ranges from -30? to 160 or 800?
- Fully Welded Stainless Steel Housing
- Anti-high temperature material could operate in hazardous areas
- It could display figure on tranducers body(LED display)
- No Oil Fill, Welds, or Internal O-rings
- Wide Operating Temperature
- Compatible with Liquids and Gases
- Rugged, Compact Design
- Pressures up to 10,000 PSI
- High Shock and Vibration
- Industrial OEM Equipment
- Hydraulic Systems
- HVAC Equipment
- Refrigeration Equipment
- Automotive
- Energy / Water Management
- Test Stands
- Off-Road / Construction Equipment
- Railways (Braking, Compressor & Engine Controls)
