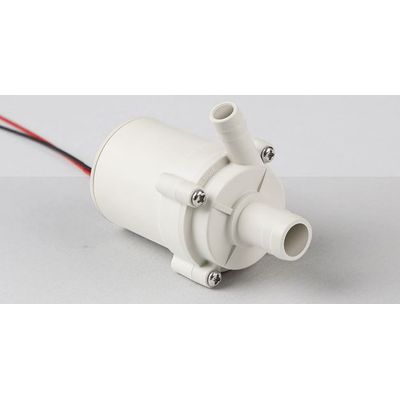

TOPSFLO - Model TL-B04 -High-Temperature Brushless DC Centrifugal Pump

Application: Under sink hot water dispenser. Instant filtered boiling ,Chilled and sparkling water systems. Instant filtered drinking water systems. Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser.

Most popular related searches

centrifugal pumping

centrifugal pump

filtered drinking water

hot water dispenser

drinking water system

Motor Type: dc brushless motor
Max Static Lift: 3.5M
Max flow: 7.5LPM

High efficiency brushless DC motor with long lifetime 20,000hours
Heavy duty work,can sustain continuous 24hours work
All wetted materials FDA approved to be safety usage
High temperature resistance 100 degrees Celsius, stable flow

Max Flow Rate: 7.5L/MIN
Max Static Lift: 3.5 M
Rated Voltage: 24v
Food Grade(Y/N): Y
Liquid Temperature: -40-100°C
Pump Theory: Centrifugal pump
Motor Type: Brushless DC motor
Ambient Temperature: -40-40°C
Media: Pure Water
Use Place: Indoor
Working Voltage Range: 12V-28V
Power Consumption: 10.8W
Ideal Life Time: 20000 Hours
Working Mode: Continuous
Power Supply: DC power supply, battery
Remarks: Can’t dry-running, not Self-priming
