EST Setaflash - Model Series 8 - 82000-2U -High Temperature Closed Cup Flash Point Tester

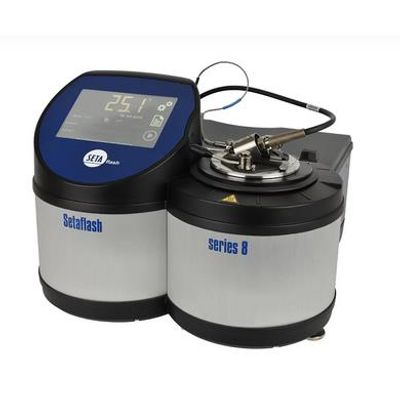

An automated closed cup flash point tester called the Setaflash Series 8 has a temperature range of ambient to 300°C (ambient to 572°F). The device makes use of a hot wire ignitor.
Most popular related searches
closed cup flash point testing
closed cup flash point
flash point testing
flash point
closed cup flash testing
flash testing
sample temperature
ASTM method
There are two ways that a flash point can function:
- Flash
- No Flash and Ramp
By using the ramp mode, which raises the sample temperature by 2°C/min, it is possible to determine a flash point that complies with IP 534 and ASTM D7236. Every 1°C up to 100°C (and every 2°C rise above 100°C) until a flash is detected or the end of the test temperature is reached, the dipping sequence is automatically initiated. A new electrical hotwire is used by the ignitor (gas flames are an option).
Configuration Options
- Series 8 ActiveCool
- Series 8 ActiveCool Gas
- Series 8 ActiveCool Gas SS Cup
- Series 8 ActiveCool SS Cup
- Series 8 Gas High Temperature
International Regulatory Compliance Methods
- ASTM D3278
- ASTM D3828
- ASTM D7236
- ASTM D8174
- ASTM E502
- BS EN ISO 3679
- BS 2000-523
- IP 523
- IP 524
- IP 534
International Regulatory Compliance Methods
- ASTM D3278
- ASTM D3828
- ASTM D7236
- ASTM D8174
- ASTM E502
- BS EN ISO 3679
- BS 2000-523
- IP 523
- IP 524
- IP 534
