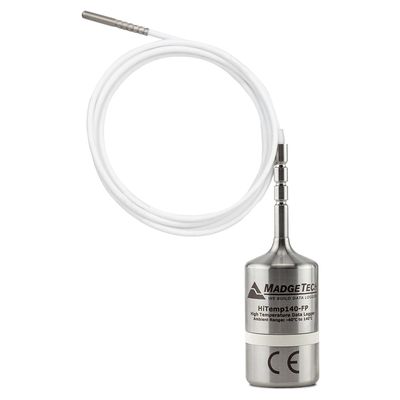

MadgeTech - Model HITEMP140-FP -High Temperature Data Logger with a Flexible RTD Probe
FromMadgeTech, Inc.
The HiTemp140-FP is a high temperature data logger built for use in harsh environments. The body of the HiTemp140-FP can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options. The HiTemp140-FP is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Most popular related searches
high temperature data logger
temperature data logger
data logger
temperature logger
temperature probe
temperature calibrator
temperature sensor
PFAS
temperature monitoring
RTD sensor
The HiTemp140-FP is a high temperature data logger with a flexible RTD probe. Includes ISO17025 accredited calibration certificate.
Key Features:
- ±0.1 °C Accuracy
- Available in a Variety of Probe Lengths
- Probe Measures Temperatures up to 260 °C
Availability: 5-7 Business Days
General
- Memory: 65,536 readings
- Reading Rate: 1 reading every 0.25 seconds up to 1 reading every 24 hours
- Baud Rate: 125,000
- Battery Life:
- 2 years typical (1 minute reading rate)
- User Replaceable Battery
- Material: Body:
- 316 Stainless Steel
- Probe: PFA Insulated Cable
- Dimensions:
- Body: 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm)
- Probes: HiTemp140-FP-6: 6 in x 0.10 in (152.5 mm x 2.5 mm)
- HiTemp140-FP-12: 12 in x 0.10 in (304.8 mm x 2.5 mm)
- HiTemp140-FP-36: 36 in x 0.10 in (914 mm x 2.5 mm)
- HiTemp140-FP-72: 72 in x 0.10 in (1829 mm x 2.5 mm)
- Key Ring End Cap:
- Key ring replaces standard bottom
- Thru-hole: 0.150"
- IP Rating: IP68
- Submersible: Yes
- Operating Environment:
- -40 °C to +140 °C (-40 °F to +284 °F) Body of Logger Cannot Exceed 140 °C
- 0 %RH to 100 %RH, 0 PSIA to 60 PSIA
- With Thermal Shield: -200 °C to +250 °C (-328 °F to +482 °F)
- Required Interface Package: IFC400 or IFC406
- Approvals: CE
- Weight: 0.1875 LBS
- Temperature
- Temperature Sensor: Flexible RTD Probe
- Temperature Resolution: 0.01 °C (0.018 °F)
- Temperature Calibrated Accuracy: ±0.1 °C (0.18 °F)
- Probe Temperature Range: -60 °C to +260 °C (-76 °F to +500 °F)
