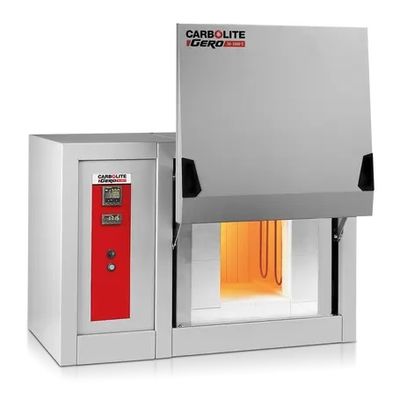

Carbolite - Model HTF 17/5 -High Temperature Laboratory Furnace
The laboratory HTF high temperature furnace range comprises 1700 °C and 1800 °C models. The two smaller models in each temperature are bench mounted and the larger units are floor-standing. These furnaces may be customised in order to satisfy specific customer requirements, e. g. the addition of catalytic afterburners for ceramic binder burn-off applications.
Most popular related searches
high temperature furnace
laboratory furnace
high temperature laboratory furnace
furnace
chamber furnace
data logger
laboratory chamber furnace
thermocouple
digital temperature controller
- 1700°C & 1800°C maximum operating temperature
- From 4 to 10 litre capacities
- High quality molybdenum disilicide heating elements
- Vertical lift door keeps heated surface away from the user
- Advanced refractory interior, used in combination with energy efficient low thermal mass insulation
- Programmable 3216P1 controller
- Over-temperature protection
- Digital RS232 communications
- Fan cooling for low external case temperature
- A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
HTF 17/5
Max temp (°C): 1700
Volume (litres): 5
HTF 17/10
Max temp (°C): 1700
Volume (litres): 10
HTF 18/4
Max temp (°C): 1800
Volume (litres): 4
HTF 18/8
Max temp (°C): 1800
Volume (litres): 8
- Heat-up time (mins): 56
- Dimensions: Internal H x W x D (mm): 210 x 190 x 190
- Dimensions: External H x W x D (mm) H (door open): 565 x 830 x 650 (850)
- Configuration: Bench-top
- Max power (W): 6200
- Digital RS232 Comms: Standard
- Thermocouple type: Pt20%Rh/Pt40%Rh
- Weight (kg): 128
