GenUV / Genicom - Model (LO)LO series ...

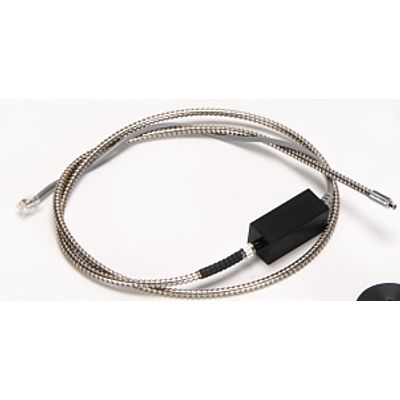

GenUV / Genicom - Model (LO)LO series UV Probe -High Temperature - LO series UV Probe

Product Details Place of Origin Daejeon, South Korea Brand Name Genicom Model Number GUVx-T1xGC-3LWLO1, GUVx-T1xGC-I2LO1 Usage Ray Sensor Theory Optical Sensor Output Analog Sensor UV Probe High Temperature LO series Optical fiber LO series UV Probe GUVx-T1xGC-3LWLO1 : Voltage output GUVx-T1xGC-I2LO1 : Current output

Most popular related searches

* Feature
- AlGaInN-based UV sensor
- Optical fiber type

* Specification
- Power supply & Output
> Vcc=6 ~ 26 VDC, Vout=0 ~ 5 VDC : GUVx-T1xGC-3LWLO1
> Vcc=9 ~ 26 VDC, Iout=4 ~ 20 mA : GUVx-T1xGC-I2LO1
- Operating temp.: ~ 200 C ( ~ 392 F)
- Detection range
   > GUVV-T11GC-3LWLO1, GUVV-T11GC-I2LO1 : 230 ~ 395nm
   > GUVB-T12GC-3LWLO1, GUVB-T12GC-I2LO1 : 220 ~ 320nm
   > GUVC-T11GC-3LWLO1, GUVC-T11GC-I2LO1 : 210 ~ 280nm
- Size
   > Probe : Dia. 20 mm, 56 mm
   > Optical fiber : 1m(standard)

* Application
- UV curing
- UV lamp/LED monitoring
