Meacon - Model MIK-P300G -High temperature pressure transmitter

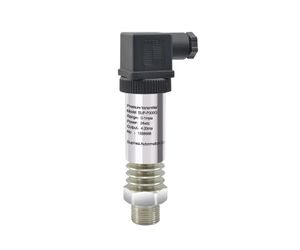

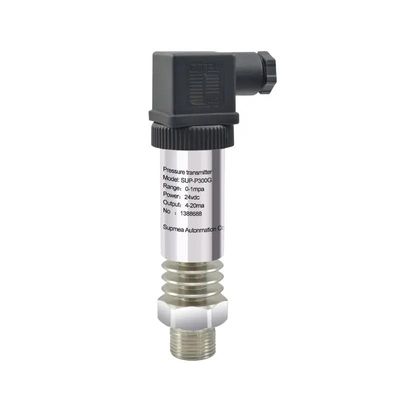

MIK-P300G is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. Features Range:-0.1~ 0 ~ 60MPaResolution:0.5% F.SOutput signal: 4~20mAInstallation: ThreadPower supply:24VDC (9 ~ 36V)Most popular related searches
temperature transmitter
pressure transmitter
piezoresistive pressure sensor
pressure sensor
pressure monitoring
gas monitoring
Product
Pressure transmitter
Model
SUP-P300G
Measuring range
-0.1…0/0.01…60Mpa
Display resolution
0.5%
Medium temperature
-50-300°C
Working temperature
-20-85°C
Output signal
4-20mA Analog output
Pressure type
Gauge pressure; Absolute pressure
Measure medium
Liquid; Gas; Oil etc
Pressure overload
0.035…10MPa（150%FS）10…60MPa（125%FS）
Power supply
10-32V (4…20mA);12-32V (0…10V);8-32V (RS485)
