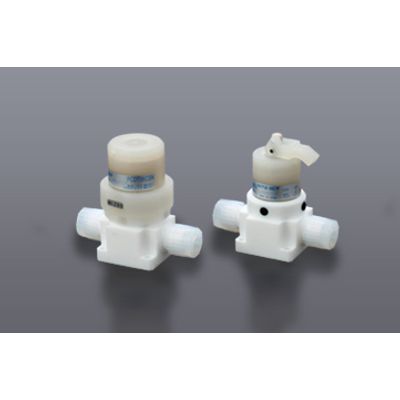

KITZ SCT - Model FCD Series -High Temperature Resin Valve
Designed to operate under high-temperature conditions, the High Temperature Resin Valve by KITZ SCT AMERICA Corporation is intended for applications that require materials capable of withstanding extreme heat. These valves feature wetted area materials specifically chosen to handle high thermal stress without degrading performance. The valve ensures reliable operation and longevity in demanding environments, such as chemical processing industries, where it can control the flow of resin or other high-temperature fluids. To access detailed specifications and make an informed selection, users are advised to log in and utilize the parametric search options available on the digital catalog. For those interested in procurement, a quote request can be made upon approval, ensuring compliance with privacy policies and GDPR regulations.
The FCD series fluorine resin valve can handle a maximum fluid temperature of up to 200ºC. The open/close indicator for the pneumatic valve is installed as standard feature and a padlock can be installed into manual valve handle to prevent human error. The toggle handle manual valve opens and shuts in 3 steps and can hold at the second position in between fully closed and fully open.
- Maximum fluid temperature up to 200ºC.
- Open/close indicator for pneumatic valve is installed as standard feature.
- Padlock can be installed into manual valve handle to prevents human error.
- Toggle handle for manual valve has 3 steps and can hold at 2 position in between fully closed and fully open.
- Valve Size : FCDT06 : FCDT08
- Fluid Temperature : +20ºC~+200ºC
- Atmospheric Temperature : +20ºC~+80ºC
- Proof Pressure : 0.5MPa(G)
- Pressure Range : Positive Pressure : 0~29.01psig (0.2MPa(G))
- Back Pressure : 0~14.50psig (0.1MPa(G))
- Allowable Leakage at Seat(cm3/min) : 0 (with water)
- Orifice Diameter (inch(mm)) : φ9.6
- Cv : 0.9 : 1.1
- Actuation Type : Manual/N.C./N.O
- Actuation Pressure : N.C.:58.02~87.02psig (0.4~0.6MPa(G)), N.O.:65.27~79.77psig (0.45~0.55MPa(G))
- Operation Air Inlet : Rc1/8(Attach a resin R1/8 Fitting at0.4-0.6 N·m to the actuation air inlet port.)
